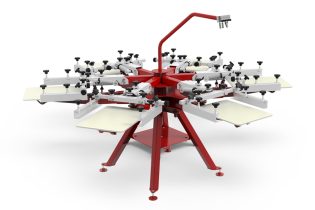

Thunder Manual Screen Printing Press

Built with Anatol’s industrial-strength construction and innovative design.

Maximum Screen Size 26″ x 36″.
Maximum Print Area 21″ x 28″.

Available in configurations of: 4 stations/4 colors up to 12 stations/12 colors.

Get a Quote

Description

The Thunder is an industrial-grade manual screen printing press designed to handle high-demand printing while minimizing wear and tear on the user. The most durable manual screen printing machine on the market, the Thunder is an excellent addition as a sampling or production press. It has the same pallet arm and carousel design as the Anatol automatic screen printing machines. The dual bearing system provides easy movement throughout the day. The Thunder is available with possible configurations of 4 Station/4 Colors, 4 Station/6 Colors, 6 Station/6 Colors, 4 Station/8 Colors, 8 Station/8 Colors, 10 Station/10 Colors and 12 Station/12 Colors.

Standard features

Design and Construction
  • Double bearing registration locks ensure the utmost print
    quality when running multi-color jobs
  • Heavy-duty steel frame and roller bearings support quick and smooth operation
  • Conical gusseting system provides uniform pallet arm support to prevent the pallets from flexing or twisting. When printing, it is important that pallets are unyielding to squeegee pressure
  • 100% tool-less setup and operation
Registration
  • Three point micro registration of the screen in a true X & Y axis (front to back, left to right, rotational movement)
  • Fine threaded micro registration (same system as our automatic presses)
  • Easy to read micro registration targets
  • Compatible with Anatol’s ARME pre-registration system, as well as many other common pre-registration systems available on the market

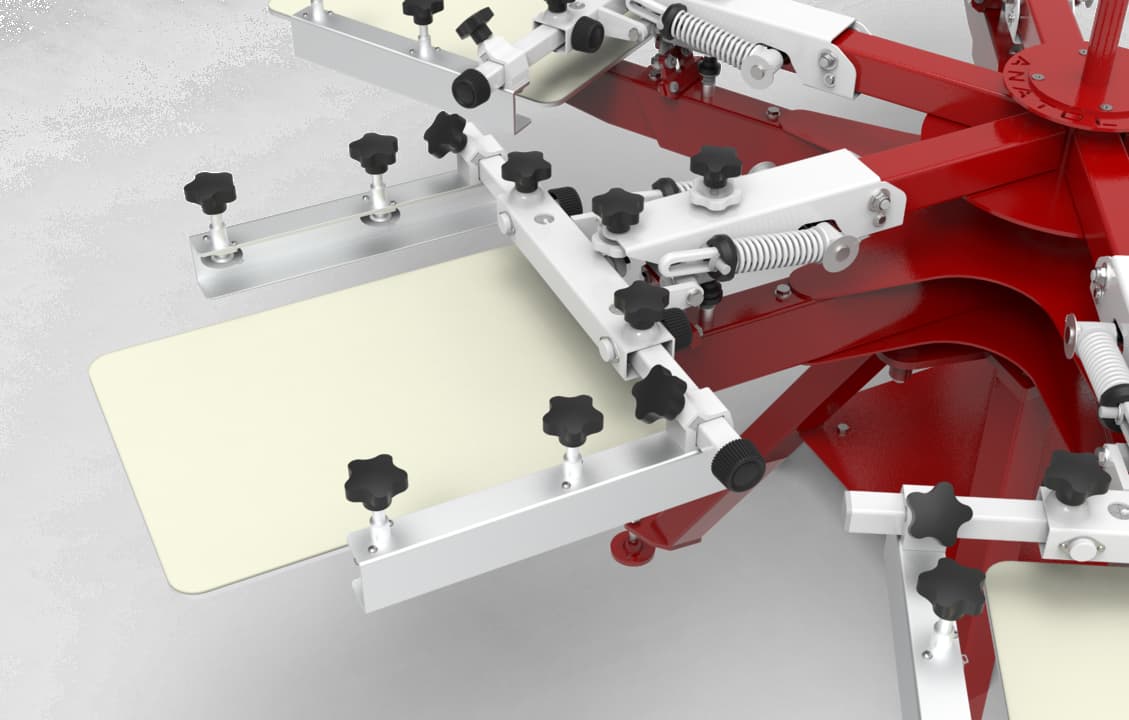

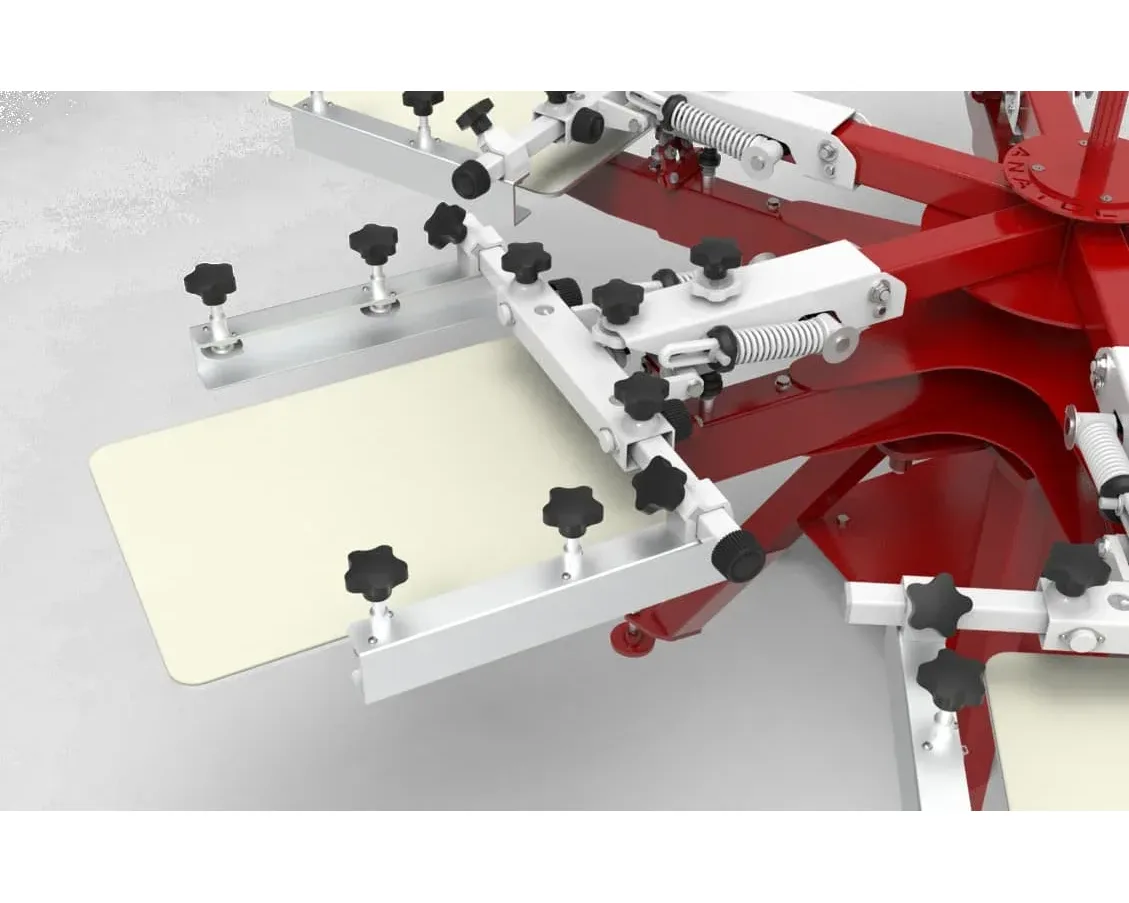

Pallet System
  • 16’’x 22’’ solid aluminum, low profile rubber coated pallets standard, with a variety of specialty and custom pallets available separately
  • Slide-style pallet system
  • Four-point pallet leveling system
  • Swivel feet on screen clamps to prevent movement while tightening
  • Laser alignment system for quick and easy apparel adjustment
Options
  • Air screen clamps
  • Jacket hold down pallets
  • Youth and sleeve pallets
  • Vacuum pallets
  • Quick release pallet system
  • Choice of side or rear clamps at no extra cost
  • Quartz flash cure units on height-adjustable floor stands
Print Heads

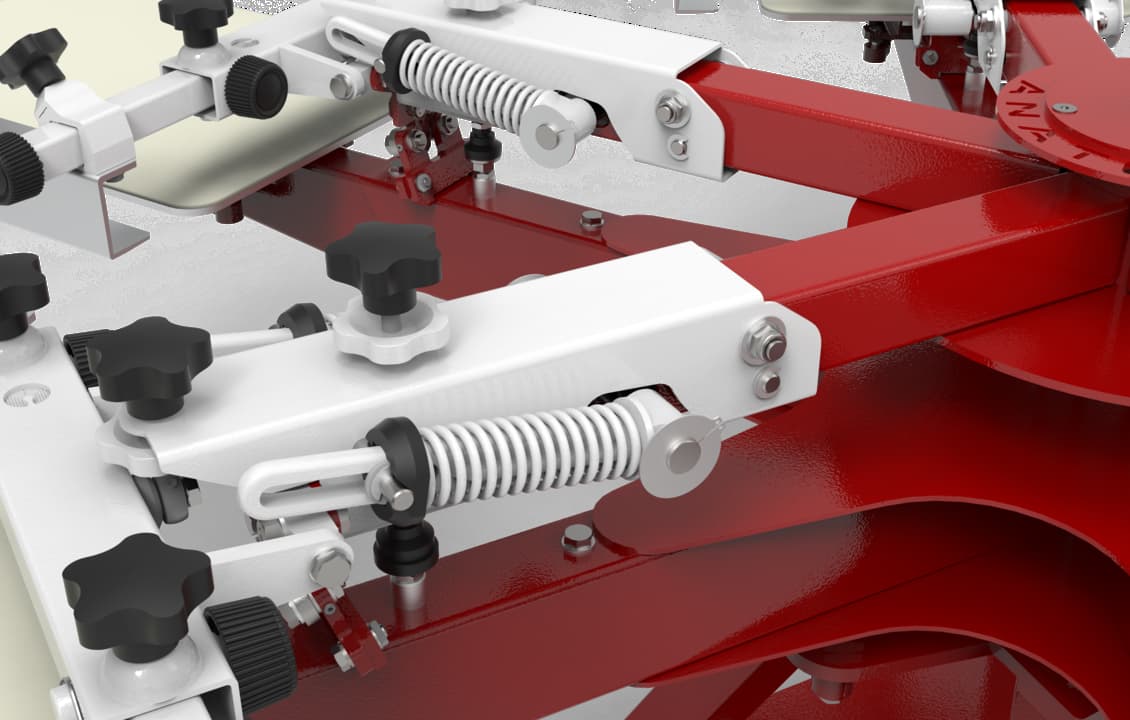

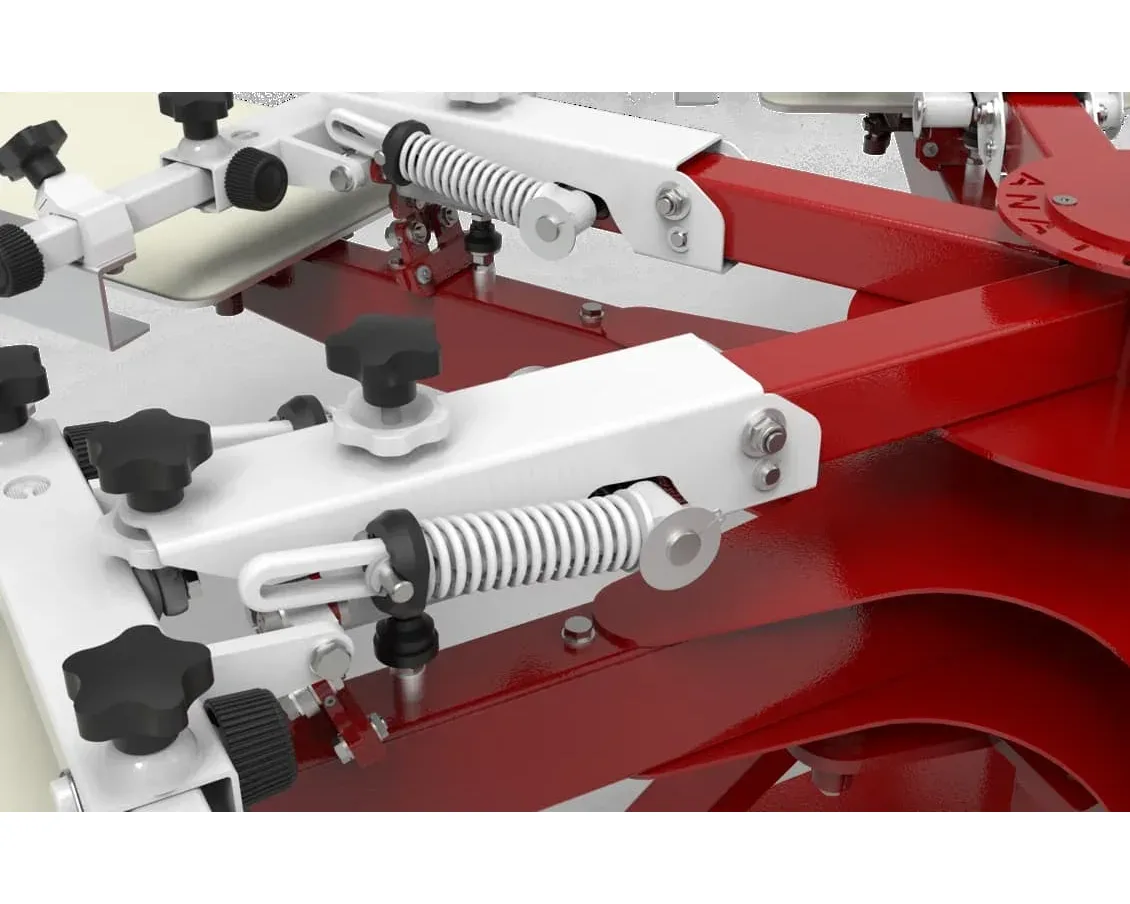

  • Print heads have an adjustable, spring-guided tensioning system; no lubrication required
  • Off-contact and screen pitch adjustments are located on each print head
  • ’’All Heads Down’’ feature on models with an equal number of stations and colors allows you to print any color from any print head on any pallet
  • Adjustable side screen clamps provide maximum stability
Air screen clamps
  • Secure your screens instantly with the flick of switch to ensure exact registration alignment. (Requires air compressor.)

Thunder Specifications



Colors/Stations Diameter Max Screen Size Max Print Size Standard Pallet Size
4/4 9’6″ (290 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
6/4 9’6″ (290 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
6/6 9’6″ (290 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
8/4 10’10” (330 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
8/8 10’10” (330 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
10/10 13’9″ (419 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
12/12 15’2″ (462 cm)
with screens in
26″ x 36″
66 cm x 91 cm
21″ x 28″
53 cm x 71 cm
16″ x 22″
41 cm x 56 cm
Download Brochure
Certification & Warranty

Premium service that will exceed your expectations

Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Two-year limited warranty.

Anatol Support Contacts

We are always ready to help!
847-582-1825
Contact Us

Warranty Registration

Please complete all form fields. By submitting this form you agree to all Warranty Terms & Conditions. You must complete a form for EACH Anatol machine you wish to register.

Questions & Answers

Need help? Have Questions? Want answers?
We’ve compiled a list of commonly asked questions our customers ask most frequently. You’ll find your answers here.

View our full product line

Screen Printing Presses

  • Automatic Presses
  • Manual Presses
  • Specialty Automatic Presses

Conveyor Dryers

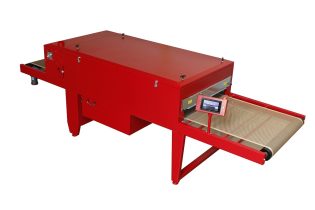

  • Ultra Electric Dryer
