High Performance Technology

Take a closer look at how Anatol’s Volt is more efficient, reduces operating cost and finds new ways to streamline production.

SERVO INDEXER

All VOLT presses are equipped with a servo indexer for rotating the pallets from station to station smoothly and quietly, even at the highest speeds. Unlike a pneumatic indexer, servo motors provide pinpoint control of acceleration and deceleration, eliminating vibration and improving the consistency of your prints.

FAST FACTS
  • Clockwise, counter-clockwise, full and half indexing
  • Step Back Mode for print-flash-print
  • Pallet position precise to +/- 001”

SERVO PALLET LIFT/LOWER

All VOLTs feature servo pallet lift and lower. Instead of relying on pneumatic components to raise and lower the pallets, a powerful and reliable servo motor delivers extreme smoothness and precision.

A major benefit of servo lift and lower is digital off-contact adjustment. On an automatic press with pneumatic lift, you would have to go under the machine and adjust the off-contact distance by hand. With servo lift, you can make exact off-contact adjustments with the touch of a button, right from the press’s touchscreen.

FAST FACTS
  • Digital central off-contact adjustment right from the press’s touchscreen
  • 0-3/8” off-contact range in 0.01” increments

Want to learn more about the All-Electric VOLT?

Let us know what information we should send you:

The Industry’s Most Advanced Print Heads

Ultra-reliable servo or AC motors.
Zero pneumatic components.
SERVO PRINT HEADS

Expand your capabilities even further with optional servo-driven print heads. VOLTs equipped with servo heads feature touchscreen controls on each head for fast job setups and test printing. Adjust your squeegee pressure and print stroke length digitally with the touch of a button – even set different pressures for each stroke when printing multiple strokes! And best of all, you can save and recall all print head settings, allowing you to set up repeat and regular orders in no time.

AC-ELECTRIC PRINT HEADS

Standard VOLT presses come with AC-electric print heads. That means zero air cylinders, valves and tubing – parts you may be all too familiar with replacing if you own an air press. No need to worry about uneven, unsteady air pressure affecting your print quality or registration; screen clamping, squeegee and flood bar locking, depth and angle adjustments are all done mechanically. Add optional individual head controls to make job setups even quicker and easier.

No air compressor sticker!

Professional-Grade Electric Automatic Screen Printing Machine.

Maximum Print Area: 15” x 16” up to 20” x 28”.

Available in configurations of: 6 stations/4 colors up to 20 stations/18 colors.

Get a Quote
Payment estimate based on Volt XL 8/7 with flash cure, 60 month term. Payments may vary based on your credit. Pricing outside the USA may vary.
Compare Download Brochure Where to buy Request a Live Demo

Automatic VOLT — The Future of Screen Printing… TODAY

The VOLT by Anatol is the only professional-grade electric automatic screen printing machine in the world. It gives you the speed, power and reliability of a screen printing press without the issues of a compressor or chiller. The VOLT uses reliable servo-driven indexers and servo lift to ensure years of reliable service without downtime caused by leaks in tubing and the build-up of dirt and moisture. Anatol’s VOLT is energy-efficient, capable of cutting your electric bill when compared to pneumatic automatic screen printing machines.
It’s designed for maximum ease of use with a 15” touchscreen interface, one touch digital off-contact controls, tool-less stroke and micro registration adjustments, laser alignment system and Speed Clamps screen locks. Anatol offers VOLTs to benefit shops of all sizes, with four models: VOLT S, VOLT M, VOLT L and VOLT XL, in configurations of 6 stations/4 colors to 20 stations/18 colors.

Standard features

Image of Print Heads
Print Heads
  • AC electric-driven print heads enhance smoothness, speed and power
  • Front and rear stroke adjustment
  • Single-handed tool-less squeegee/flood bar locking
  • Easily adjustable to side screen clamps accommodate a wide range of screen sizes
  • Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment
Image of Control Interface
Control Interface
  • Aries 2 OS – User-friendly operating system
  • 15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
  • Rotating boom arm for easy access to each print head
  • Easy access to operator’s manual
  • Automatic software updates available via Wi-Fi
  • Receive automatic email notifications with production statistics
  • Connect the machine directly to Anatol Service with Presentation Mode
Image of Functions
Functions
  • Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
  • Easily copy the same print head settings to all heads
Image of Pallet System
Pallet System
  • Pallet System Slide-style pallets allow for adjustments in print location
  • Tool-free locking
  • Precise four-point pallet leveling system
  • 16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Image of Registration
Registration
  • True three-point micro-registration of screen (front-back, left-right, rotational movement)
  • Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market
Image of Skip Shirt & Smash Button
Skip Shirt & Smash Button
  • Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
  • Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors
Image of Indexing System
Indexing System
  • Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
  • Smooth and quiet indexing at high speeds
  • Ball bearing lead screw design with internal lubrication system
  • Freewheel capability available on most models allows for manual carousel rotation
Image of Heads Up Feature
Heads Up Feature
  • On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
  • It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Image of Central Off-Contact
Central Off-Contact
  • Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen
Image of Safety System
Safety System
  • Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation
Image of Laser Alignment System
Laser Alignment System
  • Laser alignment system for quick and easy apparel alignment
  • Four independently-adjustable straight red lasers
Image of Options
Options
  • Quartz flash cure units
  • Foot pedal to control indexing
  • Quick-release pallet system
  • Variety of specialty and custom pallets available
  • Special sizing available for doorways as small as 28’’
  • Servo print heads allow you to control print stroke length and squeegee pressure digitally
  • Individual print head controls-membrane panel or touchscreen

The VOLT Specifications

Volt S
Stations
Colors		Maximum
Print Area		Maximum
Screen Size		Standard
Pallet Size		Press
Diameter		Touchscreen SupportElectrical Requirements
06/0415″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		9’ 4”Boom1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 11A
06/0515″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		9’ 4”Boom1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 12A
08/0615″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		10’ 2″Boom1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/0715″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		10’ 2″Boom1 ph 208/230v, 50/60 Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/0815″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		11’ 2″Boom1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/0915″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		11’ 2″Boom1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/1015″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		12’ 4″Boom1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/1115″ x 16″
38.1cm x 40.6cm		21″ x 28″
54cm x 71cm		16″ x 22″
41cm x 56cm		12’ 4″Boom1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A

*All presses with Stationary Arm touchscreen support include individual head controls

Volt M
Stations
Colors		Maximum
Print Area		Maximum
Screen Size		Standard
Pallet Size		Press
Diameter		Stationary Arm
or Boom
Touchscreen Support		Electrical Requirements
06/0416″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		9’8”Boom1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 11A
06/0516″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		9’8”Boom1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 12A
08/0616″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		10’11”Boom1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/0716″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		10’11”Boom1 ph 208/230v, 50/60 Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/0816″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		12’3″Boom1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/0916″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		12’3″Boom1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/1016″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		13’6”Boom1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/1116″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		13’6”Boom1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A
14/1216″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		15’7″Boom3 ph 208/230v, 50/60 Hz, 23A
16/1416″ x 18″
40.6cm x 45.7cm		23″ x 33″
58.4cm x 83.8cm		16″ x 22″
41cm x 56cm		17’5″Boom3 ph 208/230v, 50/60 Hz, 26A

*All presses with Stationary Arm touchscreen support include individual head controls

Volt L
Stations
Colors		Maximum
Print Area		Maximum
Screen Size		Standard
Pallet Size		Press
Diameter		Touchscreen Support*Electrical Requirements
06/0420″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		10’5”Boom1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 11A
06/0520″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		10’5”Boom1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 12A
08/0620″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		12’0”Boom1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/0720″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		12’0”Boom1 ph 208/230v, 50/60 Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/0820″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		13’8”Boom1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/0920″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		13’8”Boom1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/1020″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		15’3”Boom1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/1120″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		15’3”Boom1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A
14/1220″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		16’8”Stationary Arm3 ph 208/230v, 50/60 Hz, 23A
16/1420″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		18’4″Stationary Arm3 ph 208/230v, 50/60 Hz, 32A
18/1620″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		19’8”Stationary Arm3 ph 208/230v, 50/60 Hz, 36A
20/1820″ x 20″
50.8cm x 50.8cm		26″ x 36″
66cm x 91.4cm		16″ x 22″
41cm x 56cm		21’4”Stationary Arm3 ph 208/230v, 50/60 Hz, 38A

*All presses with Stationary Arm touchscreen support include individual head controls

Volt XL
Stations
Colors		Maximum
Print Area		Maximum
Screen Size		Standard
Pallet Size		Press
Diameter		Touchscreen Support*Electrical Requirements
08/0620″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		13’10”Boom1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/0720″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		13’10”Boom1 ph 208/230v, 50/60Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/0820″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		15’Boom1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/0920″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		15’Boom1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/1020″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		16’6”Boom1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/1120″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		16’6”Boom1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A
14/1220″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		18Stationary Arm3 ph 208/230v, 50/60 Hz, 23A
16/1420″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		19’6”Stationary Arm3 ph 208/230v, 50/60 Hz, 32A
18/1620″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		20’10”Stationary Arm3 ph 208/230v, 50/60 Hz, 36A
20/1820″ x 28″
50.8cm x 71cm		26″ x 43″
66cm x 109.2cm		16″ x 22″
41cm x 56cm		22’8”Stationary Arm3 ph 208/230v, 50/60 Hz, 38A

*All presses with Stationary Arm touchscreen support include individual head controls

Download Brochure

Download Brochure

Certification & Warranty

Certification & Warranty

PREMIUM SERVICE THAT WILL EXCEED YOUR EXPECTATIONS

Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Three-year limited warranty.

Anatol Support Contacts

We are always ready to help!

847-582-1825

Warranty Registration

Please complete all form fields. By submitting this form you agree to all Warranty Terms & Conditions. You must complete a form for EACH Anatol machine you wish to register.

Questions & Answers

Need help? Have Questions? Want answers?
We’ve compiled a list of commonly asked questions our customers ask most frequently. You’ll find your answers here.

View FAQs
RELATED PRODUCTS
Vulcan Series Gas Conveyor Dryers

Vulcan Series Gas Conveyor Dryers
Quik-Kote Automatic Emulsion Coating Machine

Quik-Kote Automatic Emulsion Coating Machine

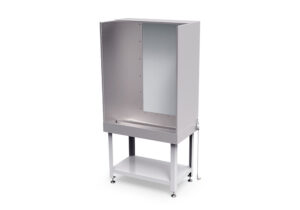

Screen Printing Washout Booth
INFINITY Oval Screen Printing Machine

INFINITY Oval Screen Printing Machine
automatic screen printing machine titan

TITAN Series

View our full product line

Screen Printing Presses

  • Automatic Presses
  • Manual Presses
  • Specialty Automatic Presses
Learn More

Conveyor Dryers

  • Ultra Electric Dryer
  • Solutions Electric Dryer
  • Vulcan Gas Conveyor Dryers
Learn More

Flash Cure Units

  • Comet Light Flash Cure Unit
  • Pilot Flash Cure Unit
  • Rapid Wave Flash Cure Unit
Learn More

Pre-Press Equipment

  • Aurora UV LED Exposure Unit
  • Cube – Screen Drying Cabinet
  • Formulator Screen Printing Ink Mixer
Learn More

Printing Accessories

  • Screen Printing Press Pallets
  • Big Forge – In-line Heat Press
  • Cooling Fan module
  • Screen Rack
Learn More

Anatol Equipment Manufacturing Co.

Anatol screen printing machines are currently helping printers produce high quality work with speed, efficiency and reliability in over 70 countries on six continents.

Equipment

Info

© 2018-2023 Anatol Equipment Manufacturing Co. All Rights Reserved.

Your message was successfully sent!
