View 360Fast, efficient quartz flash curing for manual and automatic presses.

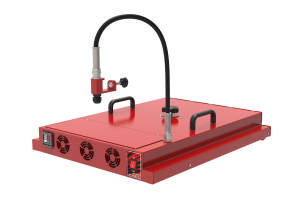

Anatol’s Comet Pro flash cure unit is an efficient and affordable curing solution for both manual and automatic screen printing shops. With a built-in digital timer and pallet sensor, the flash will automatically detect when a shirt is underneath and activate the lamps automatically for your desired time. Alternatively, you can take control of the Comet Pro directly from the touchscreen of your Anatol automatic screen printing press. The Comet Pro is available in three different curing areas – 16″ x 18″, 20″ x 24″ and 20″ x 28″.
A smart, efficient curing solution for manual and automatic shops.
- Set your desired flash time with the easy-to-use digital controller or from the touchscreen of your Anatol automatic press.
- Pallet sensor detects when a shirt is under the flash for automatic activation/deactivation – so the lamps are only “on” whenever necessary; reducing energy when compared to infrared flashes which are always on.
- Quartz lamps heat up and cool down quickly.
- Multiple curing zones – two or three zones depending on the size of the flash (see Specifications).
- Available on a height-adjustable floor stand for use with both Anatol automatic and manual screen printing presses.
Comet Pro Specifications
| COMET PRO SIZE | NUMBER OF LAMPS | NUMBER OF CURING ZONES | HEAT FLUX DENSITY | ELECTRICAL REQUIREMENTS* |
|---|---|---|---|---|
| 16”x 18” 46.0х96.9cm (52.3×96.9cm)** | 9 Lamps | 2 zones (Zone I -6 lamps, Zone II – 3 lamps) | 4.47 W/cm2 (28.87 W/in2) | 1 Ph, 208-240V, 50/60 Hz, 9kW, 40A 3 Ph, 208V, 23A |
| 20”x 24” 58.0×110.4cm (64.3×110.4cm)** | 10 Lamps | 2 zones (Zone I -6 lamps, Zone II – 4 lamps) | 3.8 W/cm2 (24.53 W/in2) | 1 Ph, 208-240V, 50/60 Hz, 12.5kW, 55A 3 Ph, 208V, 32A |
| 20”x 28” 58.0×120.0cm (64.3×120.0cm)** | 15 Lamps | 3 zones (Zone I -5 lamps, Zone II – 5 lamps, Zone III – 5 lamps) | 4.9 W/cm2 (31.61 W/in2) | 1 Ph, 208-240V, 50/60 Hz, 18.75kW, 82A 3 Ph, 208V, 47A |
| * The maximum power consumption is calculated for all lamps operating at maximum power ** The foot switch is not included in the Comet Pro package, it can be ordered separately | ||||
Premium service that will exceed your expectations
Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Two-year limited warranty.
