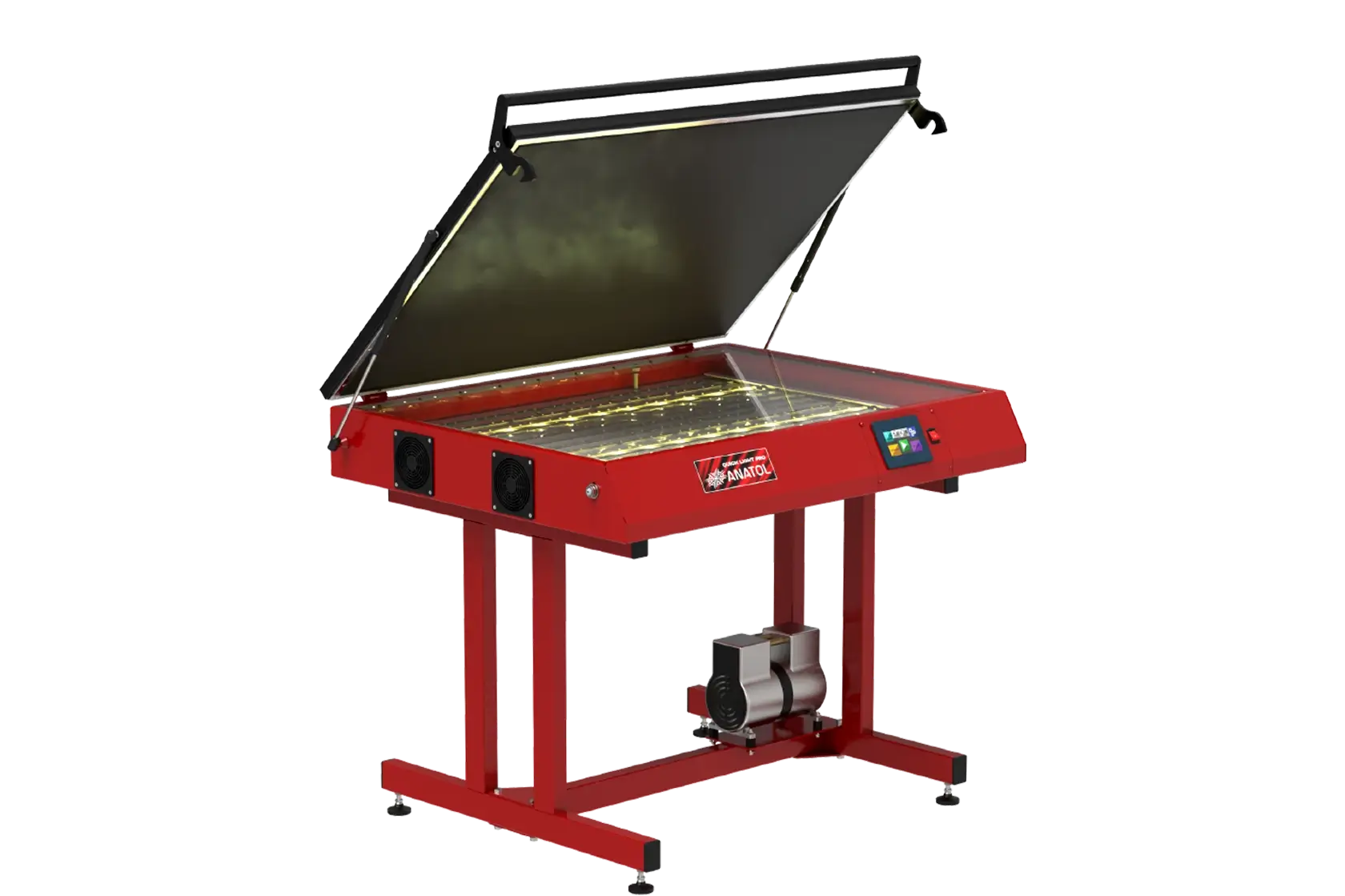

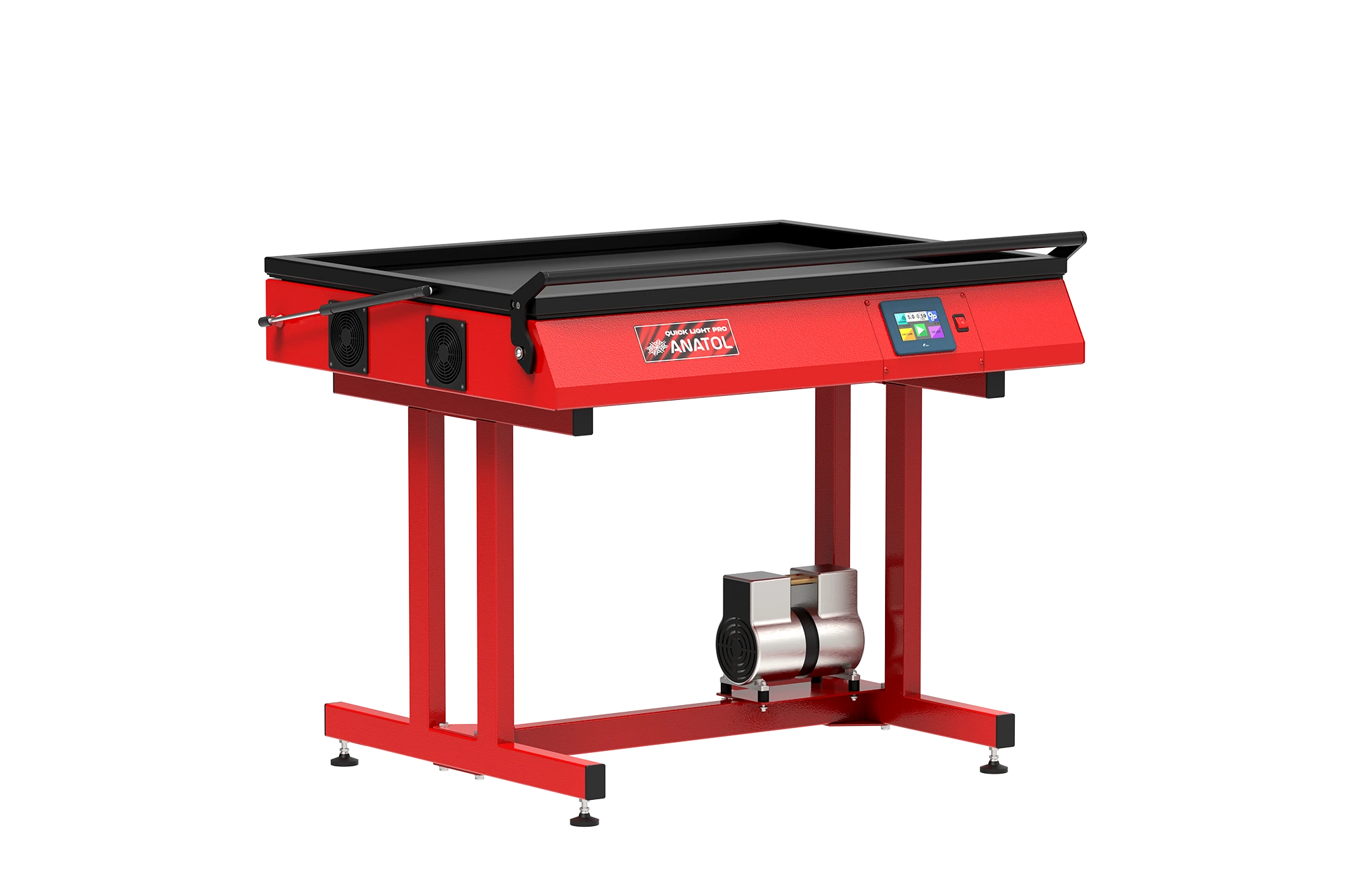

The Quick Light Pro exposure unit exposes screens quickly, evenly and efficiently. It exposes screens in seconds while giving you sharp detail and high resolution half-tones, with even exposure across the whole screen.
For maximum screen frame sizes of: 23″x31″, 26″x 36″, 36″ x 48″
Models available for screens up to 36″ x 48″. Simple one-touch operation and user-friendly 4.3” touchscreen controls, with no startup or cool down time required. Save and load programs for different types of mesh, emulsion, etc. Convenient Combinations
Pair the Quick Light Pro exposure unit with a screen rack or drying cabinet (sold separately) for maximum convenience.
Screen rack and screen drying cabinet feature heavy-duty casters for mobility.
Keep your screen preparation area neat and organized.
Compatible with the Anatol ARME pre-registration system.
Design and Construction
¼’’ (6.4mm) thick optically clear plate glass
Controlled ventilation within the light cabinet provides filtered ambient air
Fully-enclosed, heavy duty steel cabinet built for durability, longevity and operational comfort
Gas springs for easy opening and closing of the frame with blanket
Removable covers provide easy access to internal components for cleaning and replacement
Light Source
UV LEDs will dramatically reduce exposure time through optimized light saturation
High-efficiency UV LED system reduces power consumption to half of metal halide unit requirements
Yellow LED inspection strips
LEDs designed to last 50,000 hours or more
Blanket and Vacuum
Blanket made of flexible material to provide optimal vacuum seal around screen frame, film positive and glass for high resolution exposure
Oil-free vacuum pump
Control Interface
Digital control with 4.3” touch screen
Save up to 8 preset settings
Manual and automatic mode
Independent vacuum draw delay and exposure time thresholds
Automatically turn on yellow UV-safe light when the cover is opened
MODEL
VACUUM PUMP
MAX SCREEN FRAME SIZE
MAX SIZE OF ARME SYSTEM
OUTER DIMENSIONS WxDxH (*HEIGHT WITH OPEN FRAME)
ELECTRICAL REQUIREMENTS
QUICK LIGHT 23×31
140 L/MIN
23”x 31” (58cm x 79cm)
21”x 28” (53cm x 71cm)
48.1”x36.3”x37.4” (61.1”*) 122cm x 92cm x 95cm (155cm*)
1 Phase, 110V, 6A 1 Phase, 208-230V, 3A
QUICK LIGHT 26×36
140 L/MIN
26”x 36” (66cm x 91cm)
26”x 36” (66cm x 91cm)
54.5”x40.5”x37.4” (64.3”*) 138.5cm x 103cm x 95cm (163cm*)
1 Phase, 110V, 9A 1 Phase, 208-230V, 5A
QUICK LIGHT 36×48
140 L/MIN X2
36”x 48” (91.5cm x 122cm)
30”x 45” (76cm x 114cm)
Double 21”x 28” (2 x 53cm x 71cm)
62.9”x46.2”x37.4” (68.1”*) 156cm x 117cm x 95cm (173cm*)
