Rapid Transfer System | Two Station Automatic Heat Transfer Press

Quickly and efficiently print heat-applied graphics, special effects and more.

Durable steel construction and an industrial-grade design ensure years of reliable service and consistent, high quality printing.

Get a Quote

Description

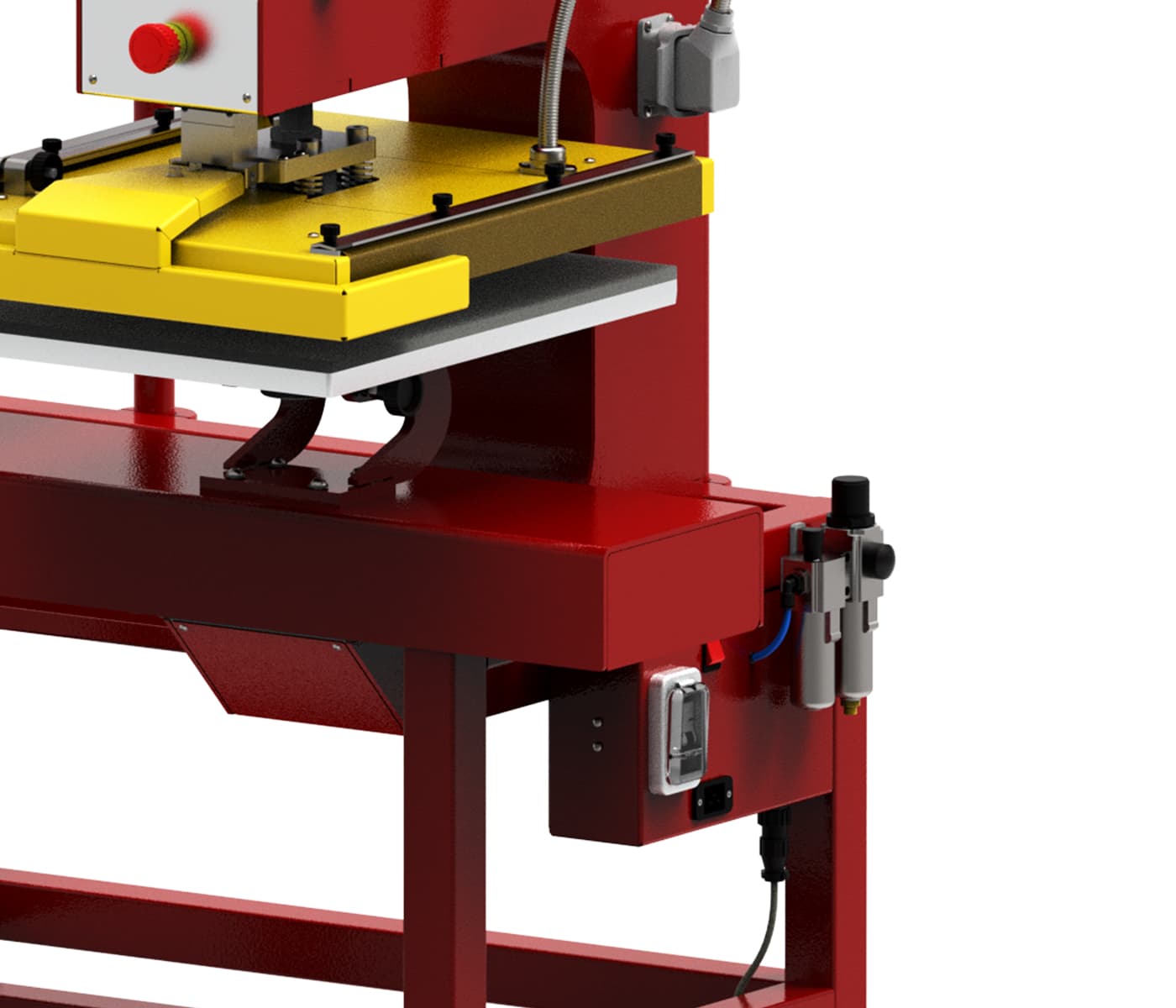

Anatol’s Rapid Transfer System (RTS) Two Station Automatic Heat Transfer press applies transfers, foil and other heat-applied decorations automatically, so you can increase production with minimal effort compared to a manual clamshell press.



Pre-heat garments before applying graphics, cure DTG after pretreating and printing, smooth textile fibers for higher quality prints and more. All this is possible due to the heat press’ extremely strong construction that delivers a maximum pressure of 120 psi.



The RTS is controlled from a user-friendly touchscreen interface, where you can make digital adjustments to time, pressure and temperature. You can even save and recall different programs for faster setup. Choose from three different modes of operation – manual, semi-automatic, and automatic – so you can work at the ideal production pace.



The RTS features heavy-duty steel construction for years of reliable service. Two 16” x 20” pallets are included, with additional pallets available for specialty applications. Built-in laser alignment systems over each pallet ensure you load garments and place prints properly every time, reducing misprints and waste.



Have a DTF or DTG machine and want to maximize your output and your print quality? Anatol’s Rapid Transfer System is the perfect solution!

Standard features

Design and Construction
  • Heavy-duty steel build
  • Includes two pallets measuring 16”x 20” each, with specialty pallets available
  • Non-stick PTFE covering on the heating surface distributes heat evenly
  • Heating surface applies a maximum pressure of 120 psi
  • Floor stand included
  • Fully pneumatic operation
Features
  • Easy-to-use touchscreen control panel
  • Work in automatic, semi-automatic or manual mode
  • Save and quickly recall job settings including time, pressure and temperature
  • Four-head laser alignment system over both pallets, included standard
  • Foot pedal control for extra convenience
LCD Touchscreen Controls
  • 4.3” full-color touchscreen display
  • Quickly program temperature, pressure and time
  • Set different parameters for each pallet
  • Save and recall different job settings for fast setups
  • Work counter tracks number of impressions per station
  • Manual, semi-automatic work modes

Automatic Heat Transfer Press Specifications



Model #Heat Transfer AreaWeightDimensions LxDxHMaximum PressureAir RequirementsElectrical Requirements
AHT16″ x 20″
41cm x 51cm
359lb
(163kg)
47.2”x34.3”x52.3”
(120cm x87cm x133cm)
120 PSI4 CFM
(12 L/min) @ 8 bar
230 V, 15 A, 3000W

Download Brochure

Download Brochure

Certification & Warranty

Certification & Warranty

Two-Year Limited Warranty

Every effort has been made to ensure the accuracy of the promotional information included in this brochure. Specifications are subject to change. Anatol Equipment Manufacturing Co. and its subsidiaries, if any, expressly disclaim any liability for damages, consequential or incidental, resulting from the purchase, transportation, installation, or use of any products based upon information contained within this brochure. Any rights or remedies are limited solely to those provided in writing by Anatol Equipment Manufacturing Co. at the time of sale.
