TITAN Series

The MOST SIZES and LEAST AIR CONSUMPTION in an automatic press…flexibility for the way you want to work.

Maximum print area of 16” x 18” (41cm x 46cm).

Available in configurations of: 6 stations/4 colors up to 12 stations/11 colors.

Get a Quote

TITAN - Small but Mighty, with Big Time Features

Efficient Innovation

Save thousands in maintenance fees and time lost with the Titan AAA and ASA screen printing presses. These presses use just two (2) cylinders per head. We have eliminated 4 screen lock cylinders, 4 squeegee/flood bar cylinders and 4 squeegee/flood bar lock-in carriage cylinders per head. Less efficient pneumatic presses utilize 10-12 cylinders per head.

You’ll use a smaller compressor which means less operating costs and with the ability to run a “greener” screen printing shop.

Exclusive air-less Speed Clamps ensure a uniform hold on any frame type or thickness, saving you from the waste of melted screen clamp air hoses or leaky toggle switches.

Looking to remove air from your screen printing operation completely? Check out our VOLT Series professional-grade all-electric automatic screen printing machines.



Advanced Technology You WILL NOT find on Another Entry-Level Screen Printing Machine

The Anatol Titan ASA and ASE screen printing machines have a high-quality linear screw style servo Indexer is standard on our presses, whereas most of our competitors incorporate this feature exclusively on high-end models. Industry’s norm for entry level automatic presses is often crank arm/gear drive style or electric motor.

The superior gauged click cylinder for central off-contact control adjusts in increments of .005″ up to 2/5 inch, resulting in 80 off-contact settings – well above industry standard.

Check out our VOLT Series professional-grade all-electric automatic screen printing machines.

Standard features

Image of Heads Up Feature
Heads Up Feature
  • On machines with an odd number of print heads, this trait allows you to raise the last head on a hinge, to create dedicated loading and unloading stations.
  • It’s like getting two machines in one. For instance, a 10 station 9 color machine can become a 10 station 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Image of Registration
Registration
  • True three-point micro-registration of the screen (front-back, left-right, rotational movement) allowing for precise and quick adjustments
  • Compatible with Anatol’s ARME pre-registration system, as well as many other common pre-registration systems available on the market
Image of Control Interface
Control Interface
  • Aries 2 OS: same industry-leading, intuitive operating system found on our top-of-the-line VOLT presses
  • 15’’ touchscreen with one-touch access to all job settings and machine functions for quick and easy setups
  • Rotating boom arm allows easy access to the touchscreen from any print head
  • Quick access to the operator’s manual
Image of Functions
Functions
  • Save all parameters of a stored job: indexing speed, number of strokes, flash cure time and temperature, ink colors
  • Set pallet preheat temperature with smart flash
Image of Central Off-Contact
Central Off-Contact
  • Gauged click mechanism allows for precise adjustments; up to 2/5 inch – 68 settings for off-contact, well above the industry standard for maximum control when printing on various substrates or using specialty inks
  • Most advanced mechanical central off-contact on the market
Image of Print Heads
Print Heads
  • Pneumatically-driven print heads (AAA and ASA models) or A/C electric print heads (ASE models)
  • Independent flood/print speed control
  • Single-handed squeegee/flood bar adjustments with a range of 0° -30°
  • Front and rear stroke adjustments
  • Gauged squeegee/flood bar knobs provide easy depth adjustments
  • Easily adjustable side screen clamps accommodate a wide range of screen sizes
Image of Safety System
Safety System
  • Ensure safety during press setup and operation with our patented safety bars, located between each print head, and on each side of the load and unload stations
Image of Skip Shirt & Smash Button
Skip Shirt & Smash Button
  • Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function
  • Smash button allows for easy skipping of improperly loaded shirts to prevent misprints
Image of Indexing System
Indexing System
  • Servo indexer allows for clockwise, counterclockwise and half indexing (ASA and ASE models)
  • Pneumatic indexer with clockwise direction (AAA models)
  • Step-Back and Multi Step-Back programs available on models with servo indexers, and on pneumatic models in configurations of 6 stations/5 colors or smaller
Image of Pallet System
Pallet System
  • Slide-style pallets allow for adjustments in print location
  • Tool-free locking
  • Precise four-point pallet leveling system
  • 16’’x 22’’ solid aluminum, low profile rubber coated pallets standard, with a wide variety of specialty and custom pallets available separately
  • Laser alignment system for quick and easy pallet location and apparel substrate positioning
Image of Options
Options
  • Quartz flash cure units
  • Quick-release pallet system
  • Foot pedal to control indexing
  • Individual print head controls
  • Special sizing available for doorways as small as 28’’

Titan S



AAAASAASE
ModelAir Requirement
@ 90 PSI
Power RequirementDiameterAir Requirement
@ 90 PSI
Power RequirementDiameterAir Requirement
@ 90 PSI
Power RequirementDiameter
6/4 S9.7 SCFM
(274 l/min)
1ph, 115
VAC, 2A
9’4”7.9 SCFM
(223 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’4”2.0 SCFM
(58 l/min)
1ph, 208 VAC, 10A
3ph, 208 VAC, 6A
9’4”
6/5 S11.3 SCFM
(319 l/min)
1ph, 115
VAC, 2A
9’4”9.5 SCFM
(268 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’4”2.2 SCFM
(62 l/min)
1ph, 208 VAC, 11A
3ph, 208 VAC, 6A
9’4”
8/6 S12.9 SCFM
(365 l/min)
1ph, 115
VAC, 2A
10’2”11.1 SCFM
(314 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’2”2.4 SCFM
(68 l/min)
1ph, 208 VAC, 11A
3ph, 208 VAC, 7A
10’2”
8/7 S14.5 SCFM
(410 l/min)
1ph, 115
VAC, 2A
10’2”12.7 SCFM
(359 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’2”2.5 SCFM
(72 l/min)
1ph, 208 VAC, 12A
3ph, 208 VAC, 7A
10’2”
10/8 S14.3 SCFM
(404 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
11’1”2.7 SCFM
(76 l/min)
1ph, 208 VAC, 14A
3ph, 208 VAC, 9A
11’3”
10/9 S15.9 SCFM
(449 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
11’1”2.8 SCFM
(80 l/min)
1ph, 208 VAC, 14A
3ph, 208 VAC, 9A
11’3”
12/10 S17.5 SCFM
(495 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
12’3”3.0 SCFM
(85 l/min)
1ph, 208 VAC, 16A
3ph, 208 VAC, 11A
12’3”
12/11 S19.1 SCFM
(540 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
12’3”3.1 SCFM
(87 l/min)
1ph, 208 VAC, 16A
3ph, 208 VAC, 11A
12’3”
Titan M



AAAASAASE
ModelAir Requirement
@ 90 PSI
Power RequirementDiameterAir Requirement
@ 90 PSI
Power RequirementDiameterAir Requirement
@ 90 PSI
Power RequirementDiameter
6/4 M9.8 SCFM
(278 l/min)
1ph, 115
VAC, 2A
9’8”8.1 SCFM
(223 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’8”2.0 SCFM
(58 l/min)
1ph, 208 VAC, 10A
3ph, 208 VAC, 6A
9’8”
6/5 M11.4 SCFM
(323 l/min)
1ph, 115
VAC, 2A
9’8”9.6 SCFM
(272 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
9’8”2.2 SCFM
(62 l/min)
1ph, 208 VAC, 11A
3ph, 208 VAC, 6A
9’8”
8/6 M13.0 SCFM
(369 l/min)
1ph, 115
VAC, 2A
10’11”11.2 SCFM
(318 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’11”2.4 SCFM
(68 l/min)
1ph, 208 VAC, 11A
3ph, 208 VAC, 7A
10’11”
8/7 M14.6 SCFM
(414 l/min)
1ph, 115
VAC, 2A
10’11”12.9 SCFM
(364 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’11”2.5 SCFM
(72 l/min)
1ph, 208 VAC, 12A
3ph, 208 VAC, 7A
10’11”
10/8 M14.4 SCFM
(408 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
10’11”2.7 SCFM
(76 l/min)
1ph, 208 VAC, 14A
3ph, 208 VAC, 9A
12’5”
10/9 M16.0 SCFM
(454 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
12’3”2.8 SCFM
(80 l/min)
1ph, 208 VAC, 14A
3ph, 208 VAC, 9A
12’5”
12/10 M17.6 SCFM
(498 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
13’6”3.0 SCFM
(85 l/min)
1ph, 208 VAC, 16A
3ph, 208 VAC, 11A
13’6”
12/11 M19.2 SCFM
(545 l/min)
1ph, 208 VAC, 6A
3ph, 208 VAC, 4A
13’6”3.1 SCFM
(87 l/min)
1ph, 208 VAC, 16A
3ph, 208 VAC, 11A
13’6”
Download Brochure
Certification & Warranty

Premium service that will exceed your expectations

Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Two-year limited warranty.

Anatol Support Contacts

We are always ready to help!
847-582-1825
Contact Us

Warranty Registration

Please complete all form fields. By submitting this form you agree to all Warranty Terms & Conditions. You must complete a form for EACH Anatol machine you wish to register.

Questions & Answers

Need help? Have Questions? Want answers?
We’ve compiled a list of commonly asked questions our customers ask most frequently. You’ll find your answers here.

View our full product line

Screen Printing Presses

  • Automatic Presses
  • Manual Presses
  • Specialty Automatic Presses

Conveyor Dryers

  • Ultra Electric Dryer
  • Solutions Electric Dryer
  • Vulcan Gas Conveyor Dryers

Flash Cure Units

  • Comet Light Flash Cure Unit
  • Pilot Flash Cure Unit
  • Rapid Wave Flash Cure Unit

Pre-Press Equipment

  • Aurora UV LED Exposure Unit
  • Cube – Screen Drying Cabinet
  • Formulator Screen Printing Ink Mixer

Printing Accessories

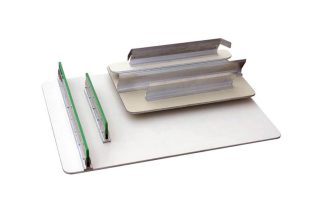

  • Screen Printing Press Pallets

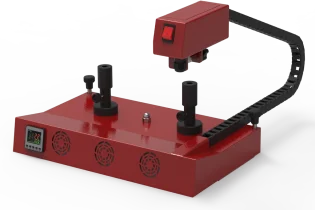

  • Big Forge – In-line Heat Press

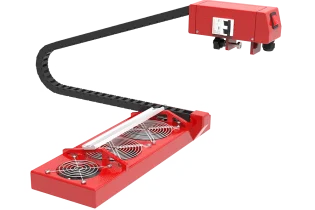

  • Cooling Fan module
