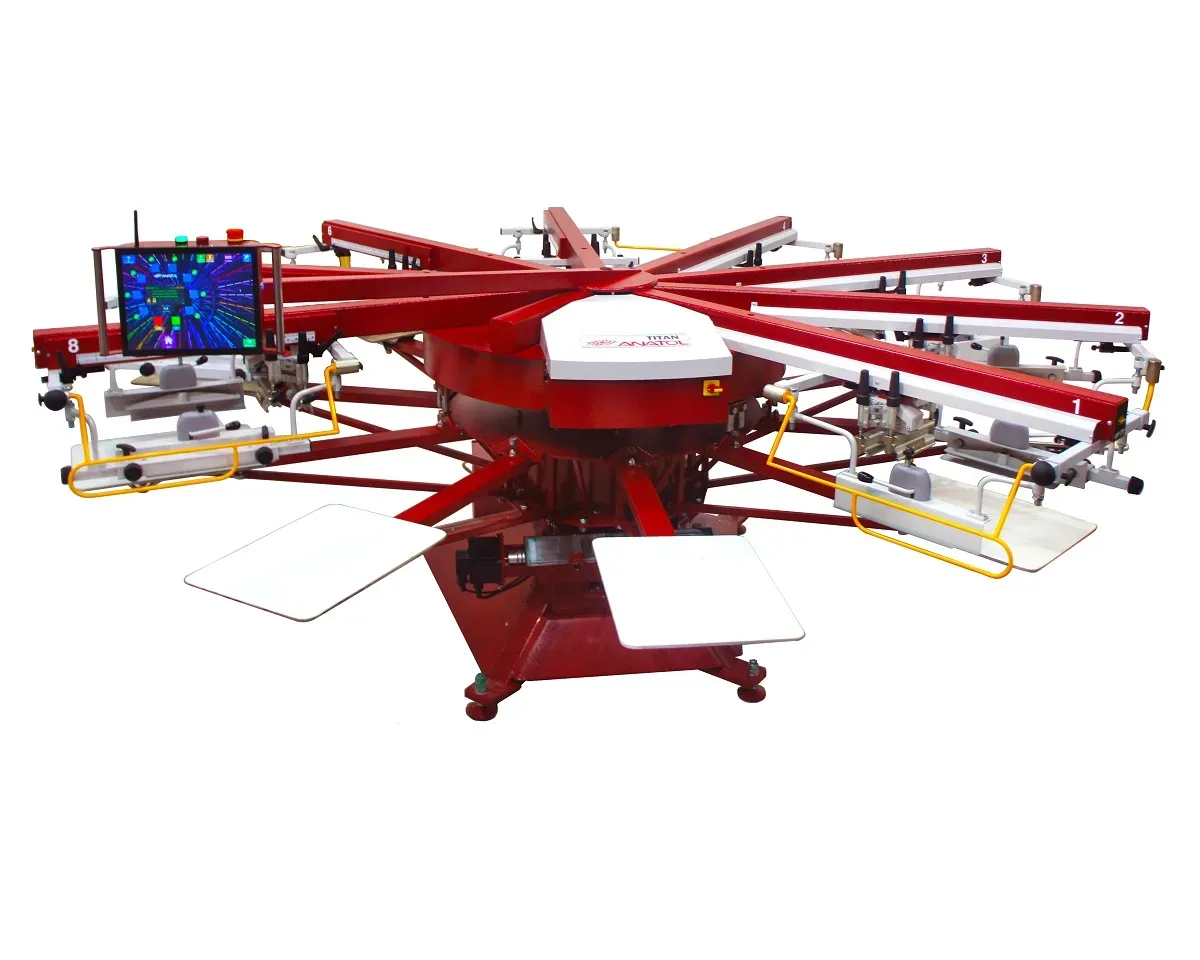

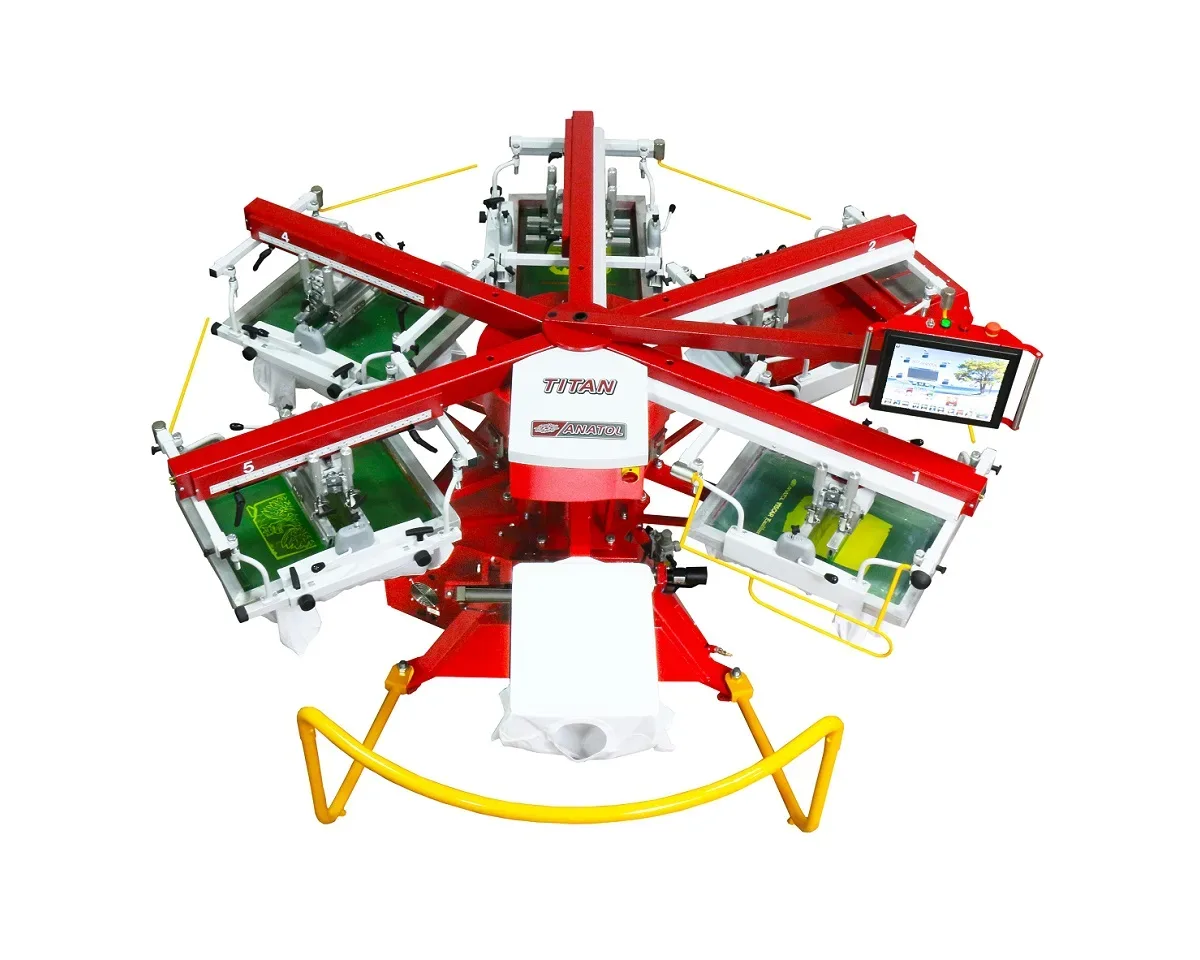

Titan Automatic Screen Printing Machine
Smallest footprint in the industry

Available in configurations of 4 stations/2 colors – 8 stations/7 colors
Maximum Print Area 15” x 16” (38cm x 41cm)

The Titan automatic screen printing machine is designed for manual printers transitioning to an automatic press and for shops in need of another, smaller automatic. It offers big time features with ease of operation, and the smallest footprint of any automatic screen printing equipment on the market. The Titan is built to give you reliable performance and customer-pleasing quality for years to come. Jobs are set up through the 15” touchscreen, which gives the user access to all printer settings with the touch of a button. With the Titan, you can make micro-registration adjustments and front/rear stroke adjustments with one hand. Each press is equipped with Anatol’s state-of-the-art safety bars. Available in configurations of 2 – 7 colors, the Titan comes standard with 16” x 22” (41cm x 56cm) pallets, with a default maximum screen size of 21” x 28” (53.3cm x 71cm), and cycles up to 1000 per hour.


Stations/Colors Maximum Print Area Maximum Screen Size Standard Pallet Size Height Diameter
4/2 15" x 16"
38.1cm x 41cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
5'7"
(170cm)
7'4"
(223cm)
4/3 15" x 16"
38.1cm x 41cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
5'7"
(170cm)
7'4"
(223cm)
6/4 15" x 16"
38.1cm x 41cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
5'7"
(170cm)
8'2"
(150cm)
6/5 15" x 16"
38.1cm x 41cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
5'7"
(170cm)
8'2"
(150cm)
8/6 15" x 16"
38.1cm x 41cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
5'7"
(170cm)
9'4"
(285cm)
8/7 15" x 16"
38.1cm x 41cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
5'7"
(170cm)
9'4"
(285cm)

  Pneumatic Index/Pneumatic Heads Servo Index/Pneumatic Heads Servo Index/AC Heads
Stations/Colors Air Consumption Electrical Requirements Air Consumption Electrical Requirements Air Consumption Electrical Requirements
4/2 4.5 SCFM
198 L/min
1 Phase 115 VAC, 2 AMPS 3 SCFM
170 L/min
1 Ph, 208-230V 6 A, 50/60Hz
3 Phase, 208-230V, 4 A, 50/60Hz
N/A
(Not Available)
N/A
4/3 6 SCFM
226 L/min
1 Phase 115 VAC, 2 AMPS 4.5 SCFM
198 L/min
1 Ph, 208-230V 6A, 50/60Hz
3 Phase, 208-230V, 4A, 50/60Hz
N/A N/A
6/4 7.5 SCFM
283 L/min
1 Phase 115 VAC, 2 AMPS 6 SCFM
255 L/min
1 Ph, 208-230V 6A, 50/60Hz
3 Phase, 208-230V, 4A, 50/60Hz
4.5 SCFM 1 Ph, 208-230V 10A, 50/60Hz
3 Phase, 208-230V, 6A, 50/60Hz
6/5 9 SCFM
311 L/min
1 Phase 115 VAC, 2 AMPS 7.5 SCFM
283 L/min
1 Ph, 208-230V 6A, 50/60Hz
3 Phase, 208-230V, 4A, 50/60Hz
6 SCFM
198 L/min
1 Ph, 208-230V 11A, 50/60Hz
3 Phase, 208-230V, 6A, 50/60Hz
8/6 10.5 SCFM
368 L/min
1 Phase 115 VAC, 2 AMPS 9 SCFM
340 L/min
1 Ph, 208-230V 6 A, 50/60Hz
3 Phase, 208-230V, 4 A, 50/60Hz
7.5 SCFM
226 L/min
1 Ph, 208-230V 11A, 50/60Hz
3 Phase, 208-230V, 7A, 50/60Hz
8/7 12 SCFM
396 L/min
1 Phase 115 VAC, 2 AMPS 10.5 SCFM
368 L/min
1 Ph, 208-230V 6 A, 50/60Hz
3 Phase, 208-230V, 4 A, 50/60Hz
9 SCFM
226 L/min
1 Ph, 208-230V 12A, 50/60Hz
3 Phase, 208-230V, 7A, 50/60Hz
Photos

Touchscreen Controls

  • 15” touchscreen with Aries operating system
  • Easy to program controls save on set-up time
  • Screen displays print count (dozen) and speed (pcs/hr)
  • Dwell times allow for adjustments to cycling speed and cool-down time

Print Heads

  • Hydraulic shock absorber at the front and rear of the print head
  • Smash button to skip shirt on the load station
  • Multiple print strokes (1 - 9) per head
  • Front/rear stroke adjustments
  • Screen air clamps

Tool-less Adjustment

  • Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
  • Gauged click-type central off-contact precisely adjusts all print stations simultaneously at a range of 0”- 0.400” at increments of .005”
  • Gauged squeegee/flood bar knobs for user-friendly depth adjustment
  • True three-point micro-registration (front-to-back, left-to-right, and rotational)
  • Single lever quick-release squeegee and flood bars

Pallet

  • Rubber-coated solid aluminum pallets
  • Pallets 16" x 22" (41cm x 56cm); other sizes available upon request
  • Quick-release or slide-style pallets available
  • Compatible with most registration systems

Construction

  • Pneumatic indexer comes standard
  • Heavy-duty rolled steel frame supports smooth, high speed production cycles
  • Large column with thrust ball bearing provides stability and reduces vibrations
      • Detachable base to fit through doors as small as 28"



      • Servo Indexer
      • When equipped with a servo indexer, the Titan can be programmed with Anatol’s Step-Back Program cycle mode indexing. The Step-Back program prints on head one, flashes on head two, then returns to head one to print, and returns to head two and flashes again prior to continuing to the next print head.



        Servo indexers are rated to last for decades, minimizing your maintenance costs



      • A/C Electric Print Heads
      • Electric print heads are stronger and provide smoother, more consistent prints than pneumatic print heads.



      • Foot pedal for manual cycle mode
      • Lets you control both auto and manual index modes.



      • Flash Cure
      • Infrared flash cure



              Rapid Wave quartz flash cure
      • Titan 4 stations/2 colors
      • Titan 4 stations/3 colors
      • Titan 6 stations/4 colors
      • Titan 6 stations/5 colors
      • Titan 8 stations/6 colors
      • Titan 8 stations/7 colors
      • Custom configurations available
  • Equipment Certification

    European Committee for Standardization® (CE) and Underwriters Laboratories® (UL) compliant: built to specifications established by both CE and UL
