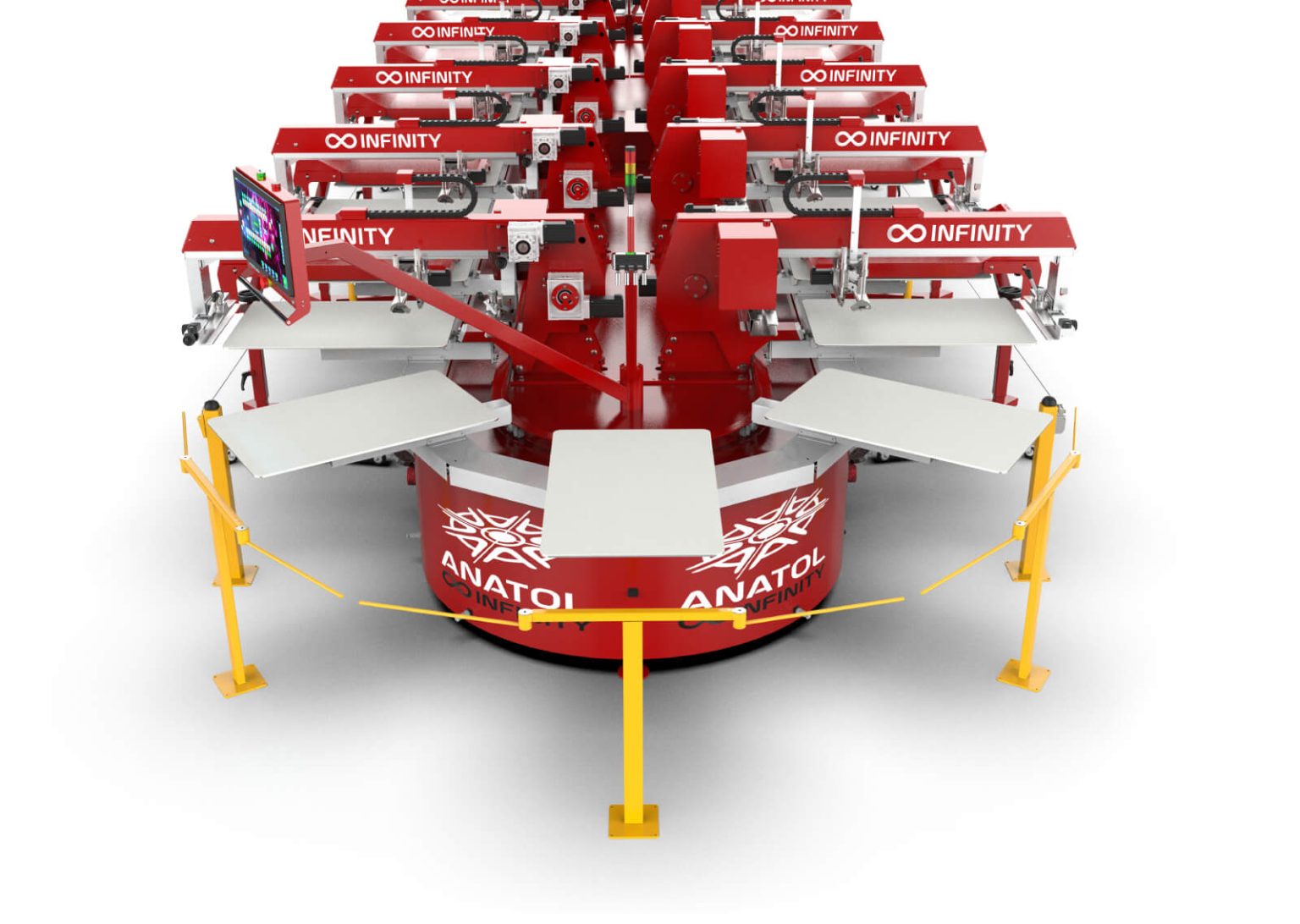

Introducing the newest addition to Anatol’s industry-leading lineup of automatic screen printing presses: INFINITY
The fully-servo INFINITY automatic oval press will boost your productivity, give you precise control over all printing parameters and take your business to the next level!
Anatol’s team of engineers, working in coordination with screen printing companies from around the world, set their decades of experience to work with the goal of designing the industry’s most capable and reliable oval screen printing machine. Incorporating many of the advances refined in our industry-leading fully-servo VOLT carousel press, we are proud to introduce INFINITY: the world’s first and only fully-servo oval automatic screen printing machine.
- Fully servo-electric machine. No air compressor required.
- Touchscreen control panels on each print head for fast and easy job setup.
- Independent, servo-driven print head elevation.
- Central control panel with 21” LCD touchscreen display.
- Intuitive ARIES operating system for full control over all machine parameters.
- Print heads with high-lift position for quick and easy screen cleaning.
- Individual controls for managing print and flood speed, squeegee pressure and angle, print stroke length, number of strokes and more.
- The squeegee angle adjustment does not affect squeegee height.
- High quality, durable steel construction.
All-servo automatic oval screen printing press
Standard features
Print Heads
- The Infinity’s servo-driven print heads are the most advanced, precise and reliable in the industry.
- Servo print heads offer expanded capabilities and unique features you can’t find on any other screen printing machine.
- Adjust your squeegee pressure digitally with the touch of a button, and even set different pressures for each stroke when printing multiple strokes.
- Set your print stroke length digitally – no proximity sensors required.
- Take full control over your print head settings right from the touchscreen control panels at the end of each print head.
- “Smart” servo motors allow you to save and recall all print head settings for quick setups when printing repeat or regular orders.
- Servo motors provide maximum smoothness and consistency for ultimate print quality.
- When you’ve entered your desired print head settings, you can quickly copy them to all print heads so you’re ready for production.
Touchscreen Controls
- Anatol’s Infinity oval screen printing machine is equipped with a big, full-color 21” touchscreen control panel powered by our exclusive Aries operating system.
- Program print head settings individually – like number of print strokes, print speed, print stroke length and squeegee pressure, and many more – or copy the print head settings to all heads simultaneously.
- Connect the Infinity to Wi-Fi and receive automatic email reports with production statistics, easily check for and install software updates, and quickly connect with Anatol Service for remote diagnostics and troubleshooting.
- Aries combines extreme robustness with ultimate user-friendliness, so you can get the absolute most out of your Infinity with maximum speed and minimum learning curve.
- Designed to give you full control over all your printing parameters in an intuitive, accessible format, Anatol’s Aries OS is as easy to use as a smartphone.
- View real time print count and speed, receive automatic maintenance reminders, and save all machine parameters and quickly recall them for repeat or regular print jobs
Pallets
- Includes a set of Anatol’s durable rubber-coated, solid aluminum pallets.
- Pallets are available in a wide variety of sizes, and custom and specialty pallets are also available to accommodate a range of different applications.
- Specialty pallets include sleeve, double sleeve, youth, hold-down, over-sized, all-over and more.
- Load and change out the pallets quickly and easily with our tool-less, Slide Style pallet bracket that allows for location adjustments in and out.
- Honeycomb-style pallets are also available as an option.
Control Panel
- Shorten your setup time and execute test prints easily with the handy touchscreen control panels found at the end of each print head.
- Enable Index Here to bring a shirt directly to your chosen print head for test printing. Set your print stroke length digitally with independent front and rear stroke limits. Adjust your squeegee pressure digitally, and even program different squeegee pressures for each print stroke when printing multiple strokes on that print head.
- Set your print and flood speed independently, program your desired number of print strokes, switch between Water-Based and Plastisol printing modes, and copy your desired settings to all heads. When an Anatol flash cure unit is connected, you can also program all your flash settings and test your flash right from the print head touchscreen control panel.
Registration
- Precise three-point micro-registration controls.
- Front-to-back, left-to-right, and rotational movement.
Servo-Indexer
- Precise control of pallet position +/- .001”
- Provides smooth indexing with superior print consistency, even at the highest production volumes.
- Index direction: clockwise or counter-clockwise.
Tool-less Adjustment
- Mechanical individual-head front and rear off-contact adjustments.
- Independent squeegee/flood bar angle adjustments.
- Digital squeegee pressure adjustment from the touchscreen keypads.
- Digital print stroke length adjustment with independent front and rear stroke limits.
- Speed Clamps, one-touch mechanical screen locks.
Construction
- The Infinity is built on a heavy-duty rolled steel frame for maximum strength and durability.
- Industrial-grade steel construction supports smooth, vibration-free printing at even the highest production speeds and volumes.
Safety Systems
- The Infinity includes safety bars around the loading and unloading stations, as well as a safety cable system that runs the length of the machine.
- When the safety system is triggered, the machine will immediately stop all movement of the pallets and print heads, protecting operators from injury.
Laser Alignment System
- Laser alignment system standard for quick and easy apparel alignment
- Two laser alignment systems included, one on either end of the machine.
- Each laser alignment system includes four independently-adjustable straight red lasers.
| INFINITY 16-STATIONS/UP TO 10-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 7m 12,5cm | 23Ft 5In | 8m 8,5cm | 26Ft 8In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 8m 48,5cm | 27Ft 11In | 10m 63cm | 34Ft 11In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 10m 83cm | 35Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 12m 29cm | 40Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 20-STATIONS/UP TO 14-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 8m 75cm | 28Ft 10In | 9m 99cm | 32Ft 10In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 10m 39cm | 34Ft 2In | 13m 7cm | 42Ft 11In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 13m 27cm | 43Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 15m 3,5cm | 49Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 24-STATIONS/UP TO 18-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 10m 37,5cm | 34Ft 2In | 11m 89,5cm | 39Ft 2In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 12m 29,5cm | 40Ft 5In | 15m 51cm | 50Ft 11In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 15m 71cm | 51Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 17m 78cm | 58Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 32-STATIONS/UP TO 26-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 13m 62,5cm | 44Ft 10In | 15m 70,5cm | 51Ft 8In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 16m 10,5cm | 52Ft 11In | 20m 39cm | 66Ft 11In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 20m 59cm | 67Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 23m 27cm | 76Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 36-STATIONS/UP TO 30-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 15m 25cm | 50Ft 2In | 17m 61cm | 57Ft 10In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 18m 1cm | 59Ft 2In | 22m 83cm | 74Ft 12In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 23m 3cm | 75Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 26m 1,5cm | 85Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 40-STATIONS/UP TO 34-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 16m 87,5cm | 55Ft 5In | 19m 51,5cm | 64Ft 2In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 19m 91,5cm | 65Ft 5In | 25m 27cm | 82Ft 12In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 25m 47cm | 83Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 28m 76cm | 94Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 44-STATIONS/UP TO 38-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 18m 50cm | 60Ft 9In | 21m 42cm | 70Ft 4In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 21m 82cm | 71Ft 8In | 27m 71cm | 90Ft 12In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 27m 91cm | 91Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 31m 50,5cm | 103Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
| INFINITY 48-STATIONS/UP TO 42-COLORS | ||||||||
| Total length (m/Ft-In) | Total height (m/Ft-In) | Total width (m/Ft-In) | ||||||
| short | long | |||||||
| XL+ | 20m 12,5cm | 66Ft 2In | 23m 32,5cm | 76Ft 8In | 1m 78cm | 5Ft 11In | 3m 65cm | 12Ft |
| 2XL | 23m 72,5cm | 77Ft 11In | 30m 15cm | 98Ft 12In | 1m 78cm | 5Ft 11In | 4m 19cm | 13Ft 6In |
| 3XL | 30m 35cm | 99Ft 8In | 1m 78cm | 5Ft 11In | 4m 25cm | 14Ft | ||
| 4XL | 34m 25cm | 112Ft 5In | 1m 78cm | 5Ft 11In | 4m 55cm | 15Ft | ||
Premium service that will exceed your expectations
Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Three-year limited warranty.
