GOCCOPRO QS1836

GOCCOPRO QS1836 – Commercial Direct-to-Screen Imaging

The GOCCOPRO QS1836 delivers commercial-grade direct-to-screen imaging, producing A3 screens up to 350 mm wide and 759 mm long — ideal for high-volume production environments.

Designed for trade printers and automated screen carousel systems, the QS1836 supports smaller frame sizes than the QS2536 model, with a minimum frame width of just 440 mm, while still maintaining a generous 350 mm imaging width and 759 mm imaging length.

Visually identical to the QS2536, the QS1836 differs only by its narrower top roller within the thermal print head (TPH) housing, which slightly reduces the frame and imaging width. Mechanically and in software, the two models are otherwise identical.

The QS1836 delivers professional, high-resolution imaging directly onto RISO Digital QS ‘P’-type mesh, offering stronger, more durable screens at a lower cost than previous ‘S’-type meshes.

By imaging directly from your computer, the QS1836 eliminates films, carbon copies, and manual artwork transfers — improving image quality, reducing production costs, and enabling faster, cleaner, and more efficient screen creation than ever before.

The new screen printing standard / RISO Dry Thermal Screen Making System

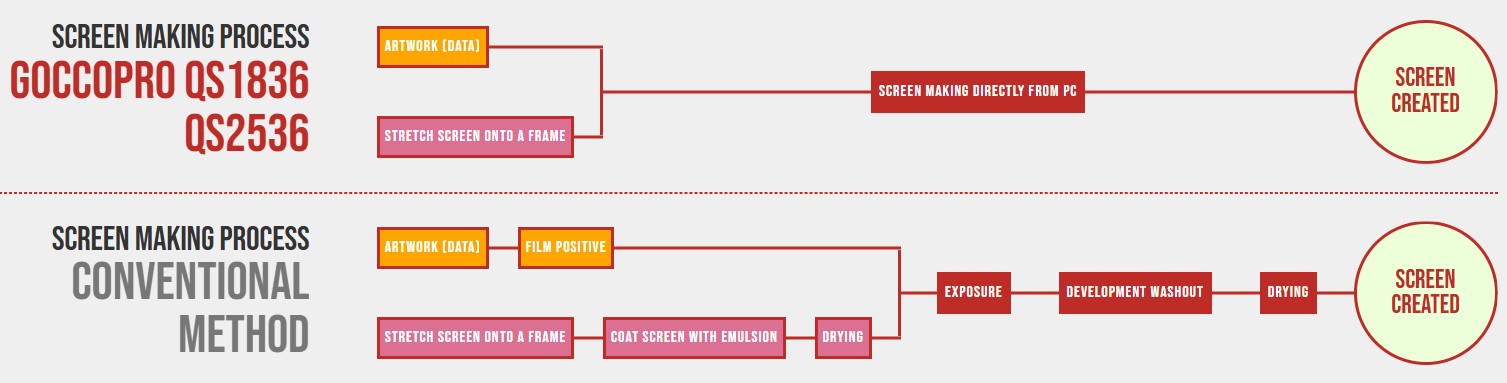

Check out this comparison of the GOCCOPRO screen making process versus traditional screen making to see how GOCCOPRO can save you time, money and labor and help you run a more efficient shop.

Print from Any Program

With its dedicated printer driver, the GOCCOPRO QS1836 lets you print directly from any software that includes a standard print function.
No need for additional applications or file imports (as required by the MiScreen model) — making the QS1836 faster, more efficient, and easier to use with virtually unlimited print options.

Single-Head Imaging

The QS1836 features a 350 mm-wide Thermal Print Head (TPH) that images designs in a single pass, ensuring maximum quality, speed, and precision — with no gaps or overburn, unlike multi-pass systems such as the QS200.

Its 350 mm imaging width and 759 mm length capacity allow the QS1836 to work with smaller frame sizes than the QS2536, while maintaining the same ultra-fine 600 × 1200 dpi resolution for true photo-quality results.

Image Specifications

• Minimum image size: 10 × 10 mm
• Maximum image size: 350 × 759 mm (single pass)

Frame Specifications

• Supports a wide range of frame sizes with flexible registration options:
• Minimum frame size: 440 × 310 mm (20 mm thickness)
• Maximum frame size: 635 × 914 mm
• Supported frame thickness: 20–45 mm

Software Compatibility

Fully compatible with both Windows and macOS systems via a universal printer driver, ensuring seamless integration into any production workflow.
