Description

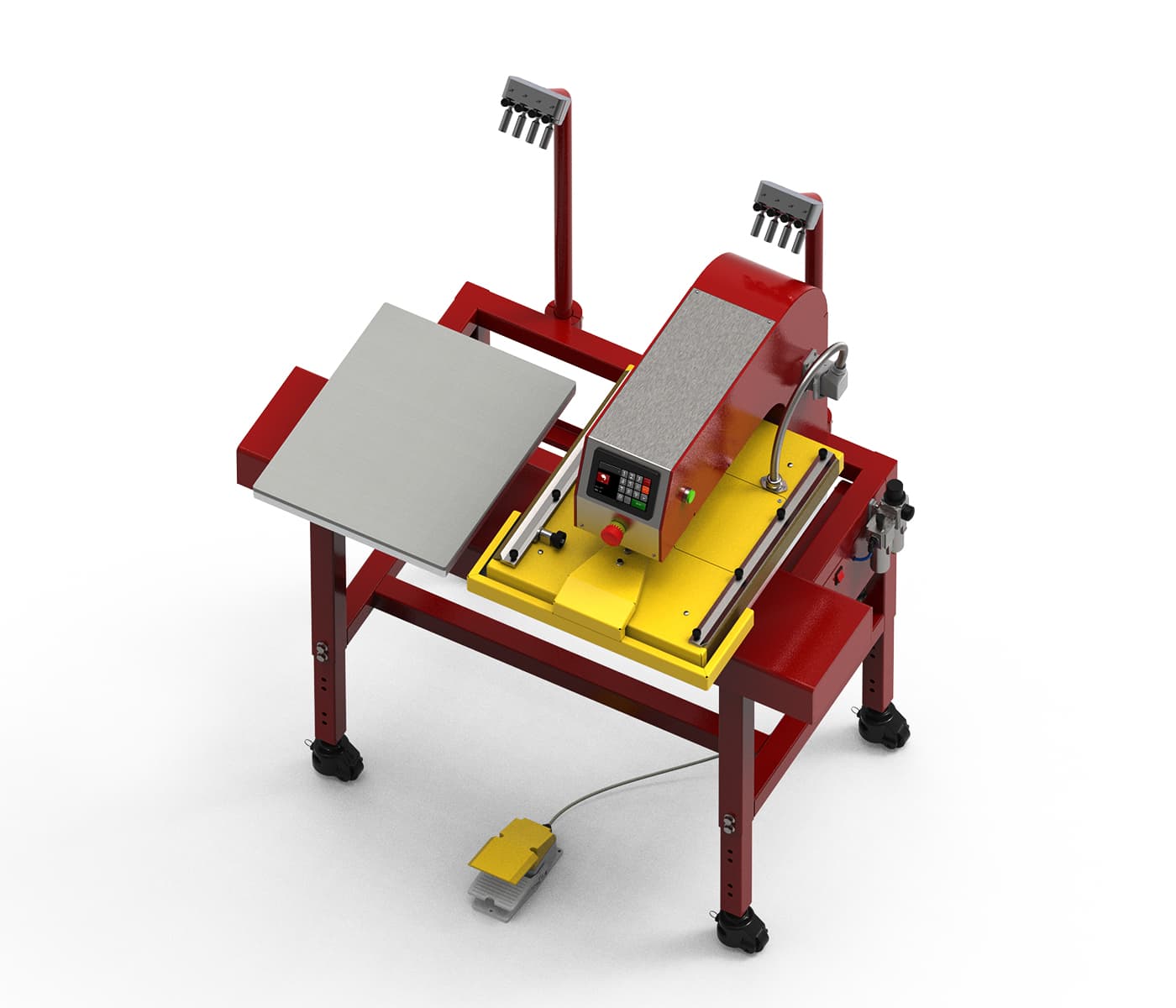

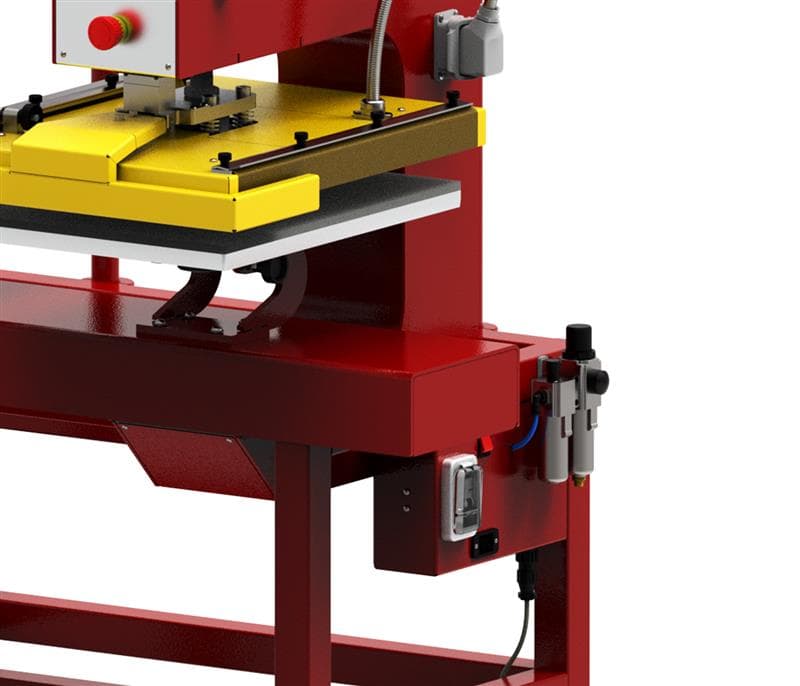

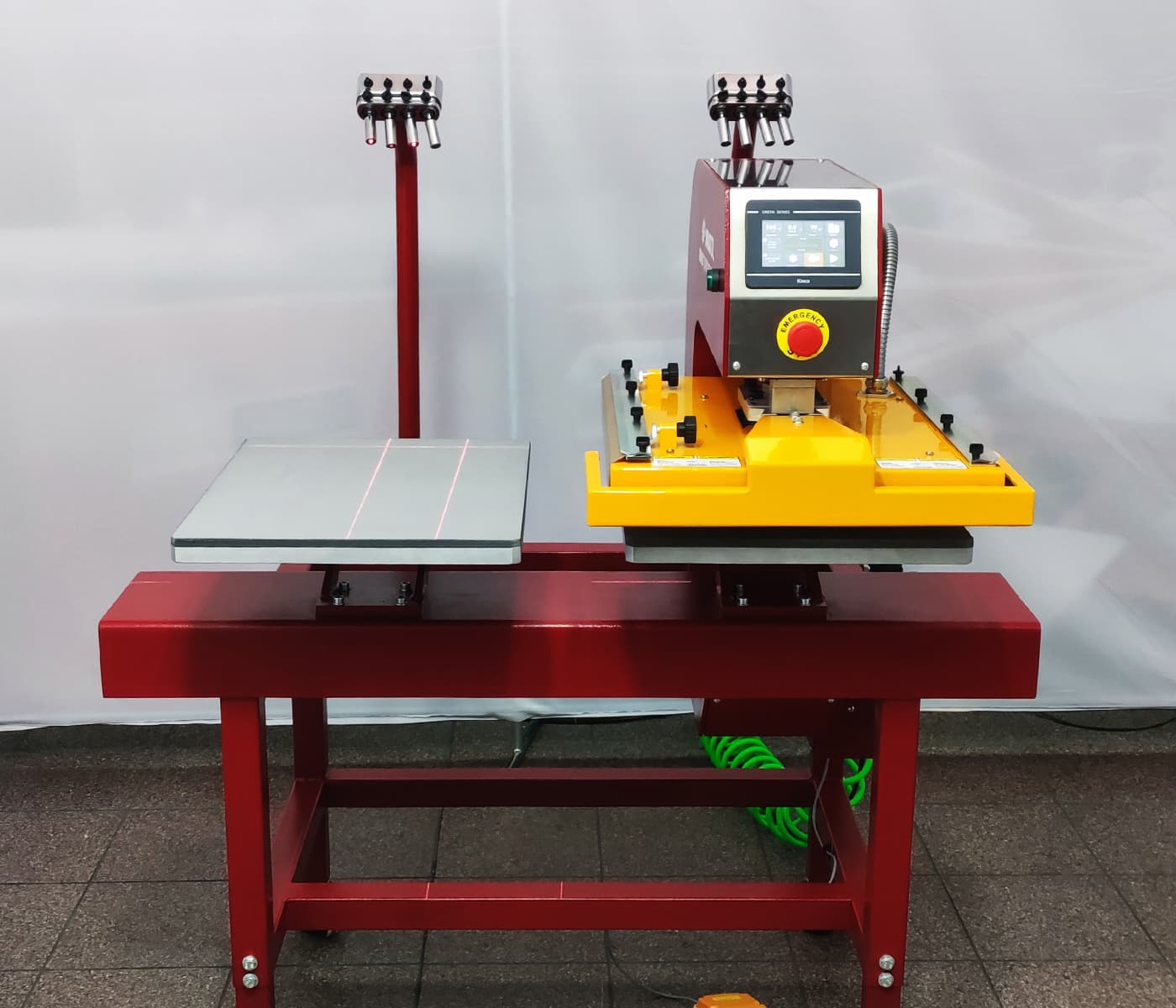

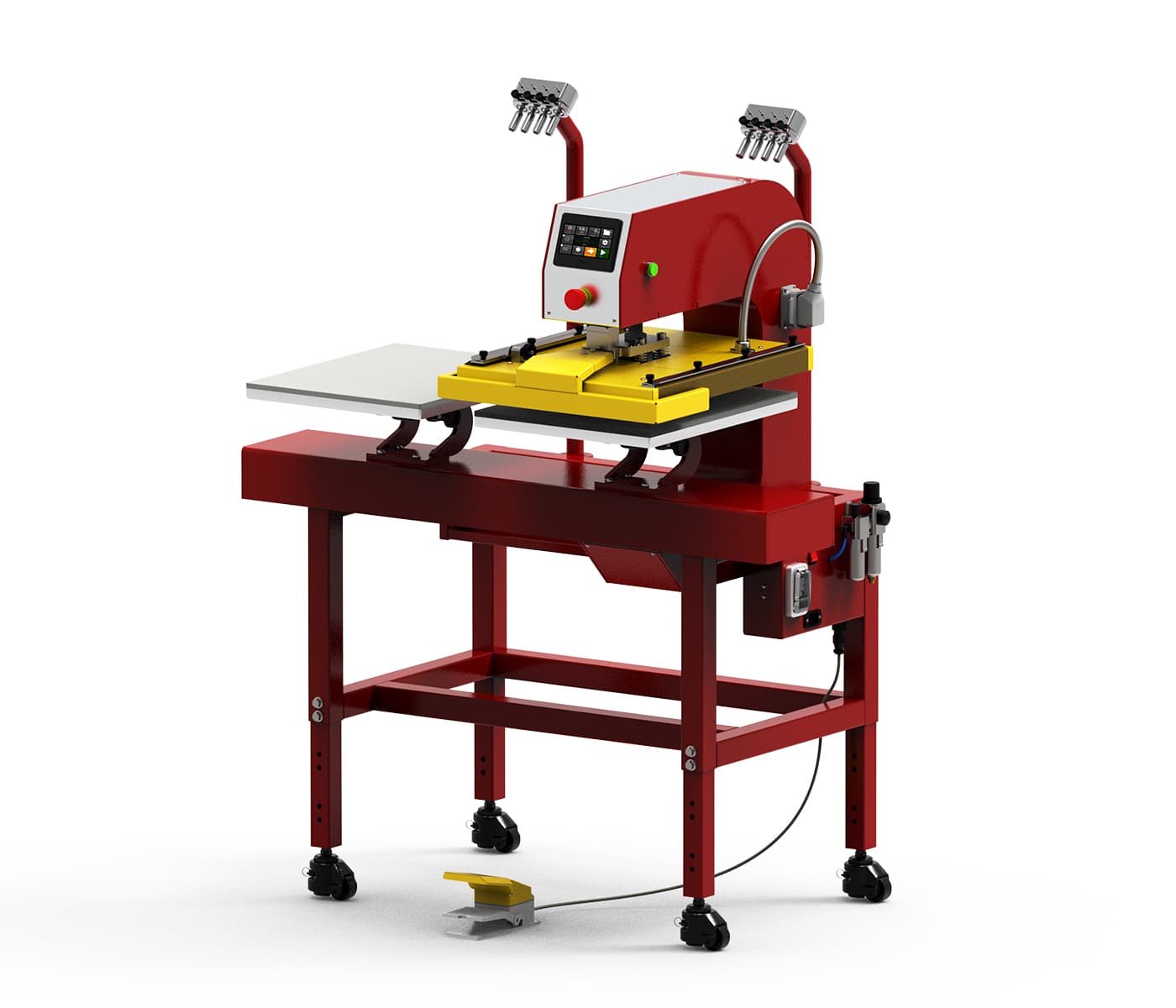

Anatol’s Two Station Automatic Heat Transfer press applies transfers, foil and other heat-applied decorations automatically, so you can increase production with minimal effort compared to a manual clamshell press.
Pre-heat garments before applying graphics, cure DTG after pretreating and printing, smooth textile fibers for higher quality prints and more. All this is possible due to the heat press’ extremely strong construction that delivers a maximum pressure of 120 psi.
The Two Station Automatic Heat Transfer Press is controlled from a user-friendly touchscreen interface, where you can make digital adjustments to time, pressure and temperature. You can even save and recall different programs for faster setup. Choose from three different modes of operation – manual, semi-automatic, and automatic – so you can work at the ideal production pace.
The Two Station Automatic Heat Transfer Press features heavy-duty steel construction for years of reliable service. It includes a floor stand so you can use it as a free-standing unit, or detach the stand if you prefer to use it on tabletop. Two 16” x 20” pallets are included, with additional pallets available for specialty applications. Built-in laser alignment systems over each pallet ensure you load garments and place prints properly every time, reducing misprints and waste.
Have a DTF or DTG machine and want to maximize your output and your print quality? Anatol’s Two Station Automatic Heat Transfer Press is the perfect solution!
Standard features
Design and Construction
- Heavy-duty steel build
- Includes two pallets measuring 16”x 20” each, with specialty pallets available
- Non-stick PTFE covering on the heating surface distributes heat evenly
- Heating surface applies a maximum pressure of 120 psi
- Floor stand included, detachable if you prefer to use it on a tabletop
- Fully pneumatic operation
Features
- Easy-to-use touchscreen control panel
- Work in automatic, semi-automatic or manual mode
- Save and quickly recall job settings including time, pressure and temperature
- Four-head laser alignment system over both pallets, included standard
- Foot pedal control for extra convenience
LCD Touchscreen Controls
- 4.3” full-color touchscreen display
- Quickly program temperature, pressure and time
- Set different parameters for each pallet
- Save and recall different job settings for fast setups
- Work counter tracks number of impressions per station
- Manual, semi-automatic and automatic work modes
Automatic Heat Transfer Press Specifications
| Model # | Heat Transfer Area | Weight | Dimensions LxDxH | Maximum Pressure | Air Requirements | Electrical Requirements |
|---|---|---|---|---|---|---|
| AHT | 16″ x 20″ 41cm x 51cm | 364LB (165 kg) | 47″x32″x55″ (119.5cm x 81.5cm x 140.5cm) | 120 PSI | 4 CFM (12 L/min) @ 8 bar | 220-240 V, 15 A, 3000W |
Premium service that will exceed your expectations
Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Two-year limited warranty.
