View 360Program your desired curing time and temperature for more effective flash curing.

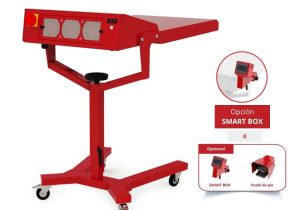

Anatol’s Comet Smart flash cure unit gives you the power and efficiency of quartz flashing, plus the ability to set a desired curing temperature with its built-in temperature sensor. Easily program your curing temperature from the touchscreen of your Anatol automatic screen printing press. The Comet Smart will heat up to and maintain your desired temperature for your set time, reducing the chances of scorching or burning shirts. Like all flashes in the Comet series, the quartz lamps will automatically and deactivate, so they’re only on when you need them to be – saving electricity compared to infrared flash cures which are always on.
The Comet Smart is available in three different curing areas – 16″ x 18″, 20″ x 24”, and 20″ x 28″. Compatible with Anatol automatic screen printing presses.
Take more control over your flash cure settings with the Comet Smart.
- Set your desired flash time and temperature from the touchscreen of your Anatol automatic screen printing press.
- Temperature sensor allows you to set your flash temperature for more effective curing, and reduces the chances of scorching or burning shirts.
- Pallet sensor detects when a shirt is under the flash for automatic activation/deactivation – so the lamps are only “on” whenever necessary; reducing energy when compared to infrared flashes which are always on.
- Quartz lamps heat up and cool down quickly.
- Multiple curing zones – two or three zones depending on the size of the flash (see Specifications).
- Includes a height-adjustable floor stand for easy mobility.
- Compatible with Anatol automatic screen printing presses.
Comet Smart Specifications
| COMET SMART SIZE | NUMBER OF LAMPS | NUMBER OF CURING ZONES | HEAT FLUX DENSITY | ELECTRICAL REQUIREMENTS* |
|---|---|---|---|---|
| 16”x 18” 46.0х96.9cm | 9 Lamps | 2 zones (Zone I -6 lamps, Zone II – 3 lamps) | 4.47 W/cm2 (28.87 W/in2) | 1 Ph, 208-240V, 50/60 Hz, 9kW, 40A 3 Ph, 208V, 23A |
| 20”x 24” 58.0×110.4cm | 10 Lamps | 2 zones (Zone I -6 lamps, Zone II – 4 lamps) | 3.8 W/cm2 (24.53 W/in2) | 1 Ph, 208-240V, 50/60 Hz, 12.5kW, 55A 3 Ph, 208V, 32A |
| 20”x 28” 58.0×120.0cm | 15 Lamps | 3 zones (Zone I -5 lamps, Zone II – 5 lamps, Zone III – 5 lamps) | 4.9 W/cm2 (31.61 W/in2) | 1 Ph, 208-240V, 50/60 Hz, 18.75kW, 82A 3 Ph, 208V, 47A |
| * The maximum power consumption is calculated for all lamps operating at maximum power | ||||
Premium service that will exceed your expectations
Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Two-year limited warranty.
