Color Magic – Máquina gráfica cama plana

La combinación final de velocidad, eficiencia y calidad en un equipo de un solo color.

Cuatro modelos disponibles, con un área de impresión máxima de: 15″ x 26″, 25″ x 38″, 30″ x 41″ or 32”x46”

Cotizar aquí

Descripción

Cuatro modelos disponibles, con un área de impresión máxima de 15″ x 26″, 25″ x 38″, 30″ x 41″ or 32”x46”.

La prensa gráfica plana Color Magic es una impresora económica de un solo color diseñada para serigrafistas listos para recibir letreros, carteles, pancartas y otros productos de gran tamaño. Capaz de usar tintas a base de agua, graficas y plastisol, la Color Magic puede imprimir en papel, vidrio, metal, vinilo, plásticos y prácticamente cualquier otro material plano. La Color Magic ofrece un vacío ajustable que garantiza que el sustrato permanecerá plano durante todo el proceso de impresión. Totalmente programable, la Color Magic puede almacenar configuraciones de trabajo para múltiples proyectos, incluyendo la relación de pelado, tiempo de permanencia, inicio y duración. El motor servo asegura un trabajo suave de impresión, dándole imágenes grandes y duraderas. La prensa de cama plana Color Magic está disponible en cuatro tamaños: 15″x26″, 25″x38″, 30″x41″ y 32″x46″.

Características estándar

Controles de pantalla táctil
  • Interfaz de pantalla táctil de 7″ con sistema operativo Aries
  • Fácil acceso a todos los ajustes de la máquina
  • Ejecuta el programa guardado en modo automático o ejecuta en modo manual
  • Lista para trabajar con plastisol ,tinta a base de agua o tintas gráficas
  • Visualización en tiempo real del recuento diario y total de impresiones
  • Establecer la apertura del alto del marco para reducir el tiempo de producción
Cabezas de Impresión
  • Carro de impresión de accionamiento con motor servo
  • Frenos para evitar derrapes en el área de impresión
  • Servomotores independientes para carro de impresión y elevación del cabezal
  • Micro-registro de tres puntos (movimiento de adelante hacia atrás, de izquierda a derecha y de rotación)
Squeegee y FloodBar
  • Ajustes de presión calibrados independientes y micro-ajustables
  • Fácil instalación y extracción del rasero y el entintador, con la opción de moverla o levantarla hacia adelante o hacia atrás sin inundar ni imprimir
  • Las velocidades del rasero y el entintador se pueden configurar individualmente
  • Regulador de presión del rasero
Tool-less Adjustment
  • Ajustes independientes del ángulo del rasero / entintador con ajustes a una sola mano de 0º-30º, en incrementos de 5º
  • El fuera de contacto central de tipo clic calibrado ajusta con precisión la estación de impresión en un rango de 0 ”-3/8” en incrementos de .005 ”
Sistema de levantado
  • Sistema sincronizado de levante con engranaje sincronizado ajustable
  • Capacidad de Flat-flood
Paletas
  • Plataforma de vacío de aluminio anodizado de alto calibre
  • Coloque los pines hacia arriba / abajo para alinear sustratos grandes
  • Cuenta con programa para ajustar el tiempo de succión y el tiempo de soplado
  • Acceso frontal para una fácil configuración y ajuste
Construcción
  • La barra de seguridad detiene la presión si le golpea, evitando lesiones graves
  • Motor servo eléctrico con variador de frecuencia variable con una duración de hasta 30 años

Color Magic Specifications



Single Station FlatbedMaximum Print AreaMaximum Screen SizeVacuum Bed SizeMachine o.d.Air Consumption @ 100 PSIElectrical Requirements
COLMAGGRA-152615″ x 26″
38cm x 66cm
32″ x 38″ x 2.25″
81cm x 97cm x 5.7cm
25″ x 38″
63.5cm x 96.5cm
41″ x 50.4″
104cm x 128cm
3 SCFM
85 L/min
85 L/min 1 Phase/3 Phase, 208-230 VAC,
14 AMPS, 50-60 Hz, 2.5 KW
COLMAGGRA-253825″ x 38″
64cm x 97cm
42″ x 50″ x 2.25″
106cm x 127cm x 5.7cm
36″ x 45.5″
91cm x 116cm
51.5″ x 60.4″
131cm x 153cm
3 SCFM
85 L/min
85 L/min 1 Phase/3 Phase, 208-230 VAC,
14 AMPS, 50-60 Hz, 2.5 KW
COLMAGGRA-304130″ x 41″
76cm x 104cm
47″ x 53″ x 2.25″
119cm x 135cm x 5.7cm
41″ x 45.5″
104cm x 116cm
51.5″ x 65.4″
131cm x 166cm
3 SCFM
85 L/min
85 L/min 1 Phase/3 Phase, 208-230 VAC,
14 AMPS, 50-60 Hz, 2.5 KW
COLMAGGRA-324632″ x 46″
81cm x 117cm
49″ x 58″ x 2.25″
124cm x 147cm x 5.7cm
43″ x 52″
110cm x 132cm
65″ x 74″
165cm x 188cm
3 SCFM
85 L/min
85 L/min 1 Phase/3 Phase, 208-230 VAC,
14 AMPS, 50-60 Hz, 2.5 KW

Descargue el folleto

Descargue el folleto

Cerfificación y garantía

Cerfificación y garantía

Two-Year Limited Warranty

Every effort has been made to ensure the accuracy of the promotional information included in this brochure. Specifications are subject to change. Anatol Equipment Manufacturing Co. and its subsidiaries, if any, expressly disclaim any liability for damages, consequential or incidental, resulting from the purchase, transportation, installation, or use of any products based upon information contained within this brochure. Any rights or remedies are limited solely to those provided in writing by Anatol Equipment Manufacturing Co. at the time of sale.

Equipment Certification

European Committee for Standardization® (CE) and Underwriters Laboratories® (UL) compliant: built to specifications established by both CE and UL

All equipment shipped to Canada is Approved under the Special Inspection Program per SPE-1000

Anatol Support Contacts

Siempre estamos dispuestos a ayudarle!

847-582-1825

Registro de garantía

Por favor, complete todos los campos del formulario. Al enviar este formulario, acepta todos los términos y condiciones de la garantía. En caso de que desee registrar más de una máquina Anatol, deberá registrar un formulario por cada una de ellas.

Preguntas y respuestas

¿Necesitas ayuda? ¿Tiene preguntas? ¿Quieres respuestas?
Hemos compilado una lista de preguntas frecuentes que nuestros clientes hacen con más frecuencia. Encontrarás tus respuestas aquí.

Ver P&R
What Our Customers Are Saying
  • We replaced an older manual press from a different brand with the lightning model. Hold registration great and well built. Very happy with the upgrade. Micro Registration and off contact... read more

    Michael Martin Avatar Michael Martin

    Quality carousel. Super professional dealings and willingness! 🤘🤘🤘🤜🤛

    Michal Valašík Avatar Michal Valašík

    We've bought an automatic coating machine and an ink mixer and everything went smooth. The production and delivery time was really fast, the costumer service and sales were available all... read more

    Mátyás Lovász Avatar Mátyás Lovász

    We really enjoy our Anatol Volt Press. The ease of use and quality of prints are amazing. Also we don’t have to worry about air compressors and loud noise. So... read more

    Al Kale Avatar Al Kale
  • We are having so much fun with the new press and the output and quality is amazing. It has really changed our business for the better. Not only is the... read more

    media thumbnail 0media thumbnail 1
    Chris Montgomery Avatar Chris Montgomery

    Ken is an absolute professional and highly knowledgeable of the equipment he sells. Will definitely keep going to Ken for guidance for future purchases.

    Elevated Screen Printing Avatar Elevated Screen

    Paul was very helpful. I knew upgrading to this equipment would be a game changer, and I’m not disappointed. The Thunder is faster to set up than my old press... read more

    Troy Brown Avatar Troy Brown

    I purchased an Anatol Thunder 6 color press. When I got the press in and set up it was very clear that this is a quality built press. It is... read more

    Don Chesek Avatar Don Chesek
  • La compra de los equipos Anatol ha sido una completa bendición, desde el primer día la atención por parte de Nelson ha sido extraordinaria, siempre atento y pendiente a todas... read more

    media thumbnail 0media thumbnail 1media thumbnail 2media thumbnail 3
    orester nieto Avatar orester nieto

    We have had a great experience with Anatol from the very beginning through post setup/training. Paul really helped us decide on the best equipment for our needs and Gene did... read more

    Darin Uesugi Avatar Darin Uesugi

    Best Screen Printer company, and customer service don’t waste your money on anything else! Waited a year and was worth every cent.

    Alexander Weston Avatar Alexander Weston

    Thank You Paul and everyone at Anatol for building me a press, dryer, and exposure unit. This is my second anatol and could not be happier. You guys... read more

    Jeff Posey Avatar Jeff Posey
  • I purchased an Anatol Volt about one and a half years ago and have not looked back. One think that is important to me is how a company handles... read more

    Charlie Berlin Avatar Charlie Berlin

    Very happy with the purchase of our Volt. Manny, their tech was very helpful in setting our machine up and getting us running. Adrian in Sales was great... read more

    Jason Crawford Avatar Jason Crawford

    We are very happy with our decision about choosing Anatol for our new automatic press. The Volt is a great choice if you're looking for all electric...super quiet and no... read more

    Chad Sherman Avatar Chad Sherman

    If you’re looking for any press. Anatol is the way to go. Ken is the BEST sales rep you will come across by far! Our press has been delivered,... read more

    Jacob Hoyt Avatar Jacob Hoyt
View our full product line

GET A QUOTE

ESSENTIAL ADD-ONS

Choose helpful accessories to make your work simpler and more perfect

Cooling Fan

View more

Cooling Fan

COOLING FAN MODULE
FOR ANATOL AUTOMATIC PRESSES

  • Quickly and easily mounts in the print carriage of an Anatol VOLT, Vector or Titan automatic press
  • Make tool-less adjustments exactly as you would adjust a squeegee or flood bar
  • The independent power supply is attached to the fan housing with a hard cable.
  • The Cooling Fan is powered by a 110V or 220V power supply.
  • The device’s maximum power is 62W.
Mobile Forge In-line Heat Press

View more

Mobile Forge In-line Heat Press

Mobile Forge
In-line Heat Press

Improve your print quality and expand your screen printing possibilities with Anatol’s easy to use Mobile Forge in-line traveling iron unit!

The Mobile Forge iron mounts in the print carriage of your Anatol automatic press and provides heat and pressure to your substrate. Use it to mat down fibers and smooth your ink layers, reducing fibrillation and giving you a solid underbase for bright, vibrant prints on dark garments. Apply foil transfers and cure discharge ink right on your screen printing press and more!

Anatol Registration Made Easy

View more

ARME: Anatol Registration Made Easy

ARME: Anatol Registration Made Easy

User-friendly registration system compatible with all Anatol automatic and manual presses.

Available in 6 configurations for screen sizes of: 20″x24″, 21″x28″, 23″x31″, 23″x33″, 25″x36″ and 26″x36″.

Roller Squeegee

View more

Roller Squeegee

Roller Squeegee

Attach to your Anatol automatic press to prevent fibrillation and increase print quality.

  • Tool-less installation and adjustments.
  • Includes retensionable mat-down frame.
  • Quickly and easily mounts in the print carriage of an Anatol VOLT, Vector or Titan automatic press.

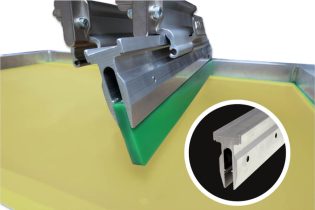

Screen Printing Press Squeegees
