Stroke Adj. Bracket
$50.60
Part Number: ST08A0001031
Categories: Mechanical parts
Used For: Horizon, Stratus, Trident
Stroke Adjustment Bracket mounted at the front and at the end of each print carriage in all of Anatol’s automatic screen printing presses with air-operated print heads. The bracket can be moved using the stroke adjustment handle. Moving the bracket allows you to adjust the lengthy of your print area.
Bracket is made of cast iron, and to make it a full set it is recommended to purchase a stroke adjustment handle and stroke adjustment key also available in Anatol’s parts store.
Key features:
- Allows for stroke length adjustment
- Used only on presses with air-driven print heads
Related Products

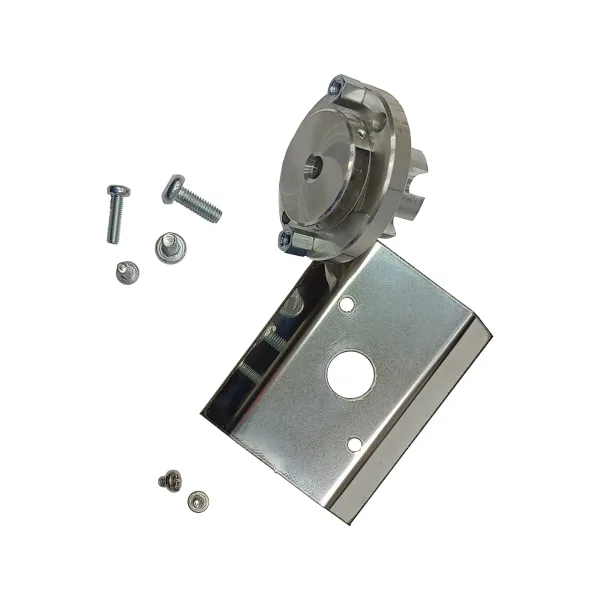

Temperature Sensor Housing

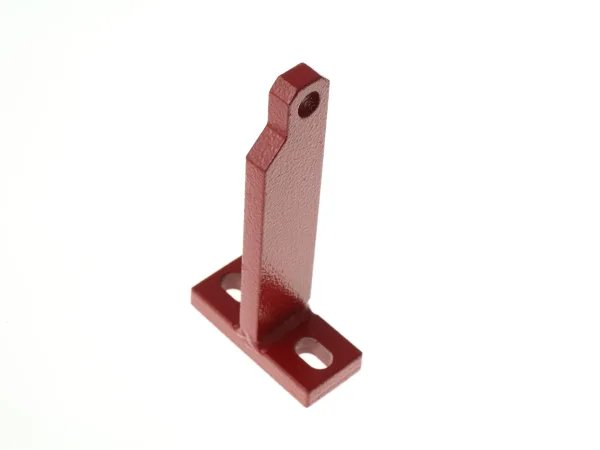

Index Lever
