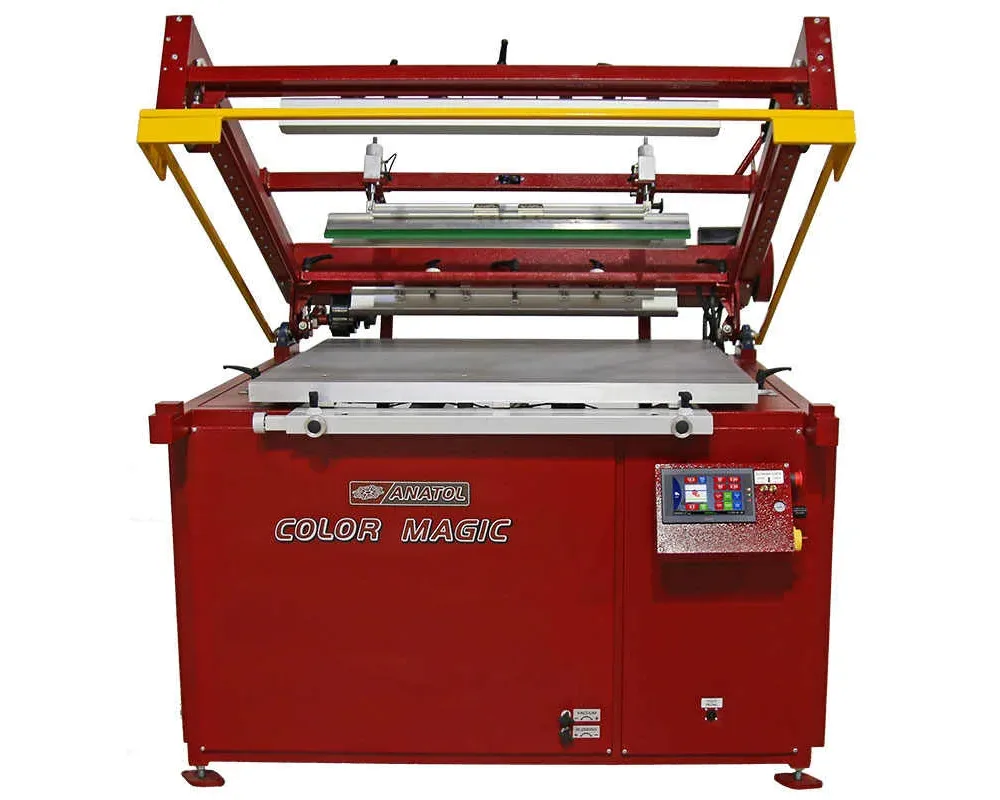

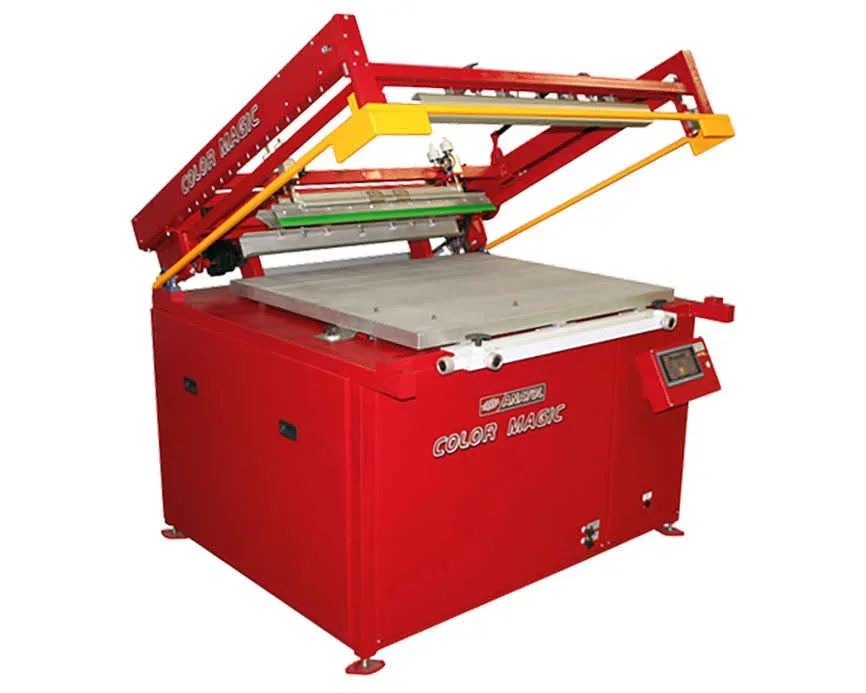

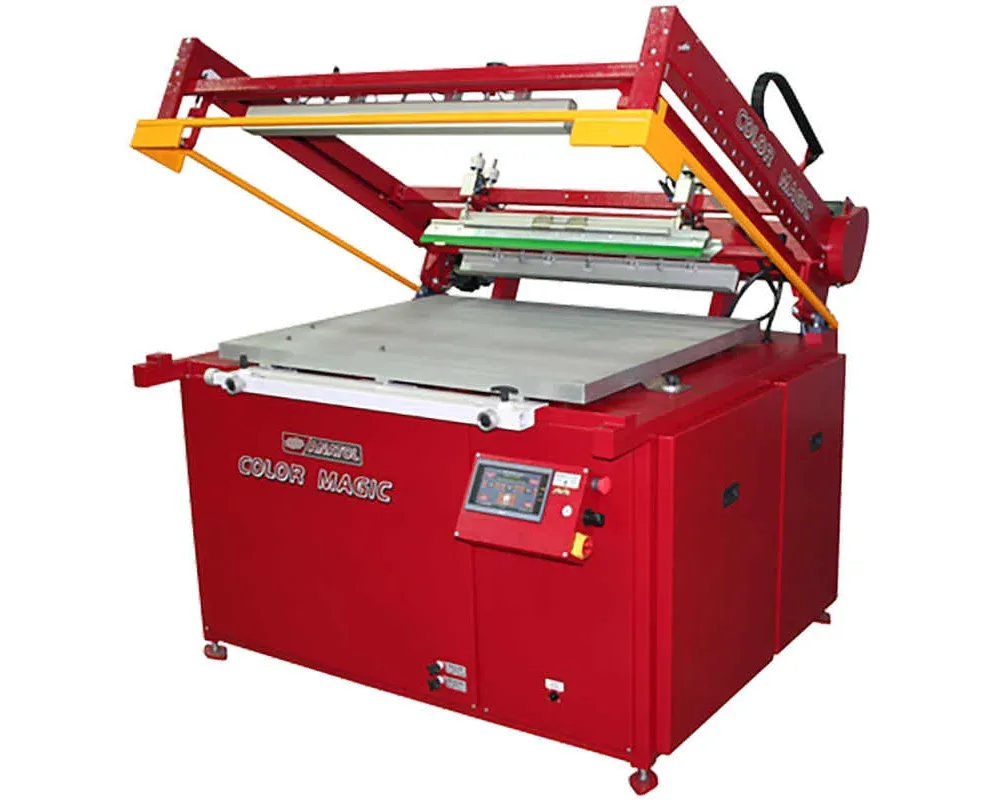

Color Magic Flatbed Graphic Press: Versatile, Affordable, and Precise
The Color Magic flatbed graphic press by Anatol is a perfect choice for professional printers. The Color Magic flatbed press helps printers create high-quality signage, posters, banners, and large-format graphics with speed and precision. This affordable, single-color press is designed for versatility, capable of printing on a wide range of substrates, including paper, glass, metal, vinyl, plastics, and virtually any flat stock. With support for both water-based and plastisol inks, the Color Magic delivers exceptional results for diverse printing projects.
Key Features of the Color Magic Flatbed Press
- Adjustable Vacuum Bed: Ensures substrates lie flat during printing, guaranteeing precise and consistent results.
- Servo-Driven Motor: Powered by a durable servo electric motor with a variable-frequency drive, rated for up to 30 years of reliable performance, ensuring smooth and efficient print jobs.
- Programmable Settings: Fully programmable with the Aries operating system on a 7″ touchscreen interface, allowing you to save job settings like peel ratio, dwell time, and print duration for quick setup on repeat projects.
- Precision Print Heads: Features independent servo motors for print carriage and head lift, with true three-point micro-registration (front-to-back, left-to-right, and rotational) for pinpoint accuracy.
- Squeegee and Flood Bar: Offers calibrated, micro-adjustable pressure settings and independent speed controls for precise printing. Tool-less angle adjustments (0°–30° in 5° increments) simplify setup.
- Advanced Peel System: Synchronized gear-driven peel system with flat-flood capability for flawless prints.
- Safety and Durability: Equipped with a safety bar to stop the press if triggered, preventing injuries, and a robust construction for long-term reliability.
- Tool-less Adjustments: Gauged click-type central off-contact (0°–3/8° in 0.05° increments) and easy squeegee/flood bar adjustments streamline operation.
- Heavy-Duty Pallets: Anodized aluminum vacuum-bed pallets with programmable vacuum suck and puff times, plus set pins for aligning large substrates.
Why Choose the Color Magic?
Perfect for small to medium-sized print shops, the Color Magic combines affordability with advanced features, making it a top choice for flatbed screen printing. It’s intuitive touchscreen controls, precise micro-registration, and versatile substrate compatibility ensure professional-grade results for signage, posters, banners, and more. Whether you’re printing on vinyl, metal, or glass, the Color Magic delivers vibrant, high-quality prints with minimal setup time.
Ready to elevate your printing capabilities? Contact Anatol today to learn more about the Color Magic flatbed graphic press or request a demo.
Standard features
Touchscreen Controls
- 7” touchscreen interface with Aries operating system
- Easy access to all machine settings
- Run saved program in auto-mode, or run in manual mode
- Set to plastisol or waterbased ink
- Real time display of daily and total print count
- Set how high frame opens to reduce production time
Print Heads
- Servo electric-driven print carriage
- Breaks to prevent drifting in print area
- Independent servo motors for print carriage and head lift
- True three-point micro-registration (front-to-back, left-to-right and rotational movement)
Squeegee and Flood Bar
- Calibrated independent and micro-adjustable pressure settings
- Easy squeegee and flood bar installation and removal, with option to move or raise either to front or rear without flooding or printing
- Screen printing squeegee and flood bar speeds can be set individually
- Squeegee pressure regulator
Tool-less Adjustment
- Independent squeegee/flood bar angle adjustments with single-handed adjustments of 0º-30º, at increments of 5º
- Gauged click-type central off-contact precisely adjusts print station at a range of 0”-3/8” at increments of .005”
Peel System
- Adjustable synchronized gear-driven peel system
- Flat-flood capability
Pallets
- Heavy-gauge anodized aluminum vacuum-bed pallet
- Set pins up/down to align large substrates
- Program vacuum suck time and puff time
- Front access for easy setup and adjustment
Construction
- The safety bar stops the press if it is hit, preventing serious injury
- Servo electric motor with variable-frequency drive rated to last up to 30 years
Color Magic Specifications
| Single Station Flatbed | Maximum Print Area | Maximum Screen Size | Vacuum Bed Size | Machine o.d. | Air Consumption @ 100 PSI | Electrical Requirements |
|---|---|---|---|---|---|---|
| COLMAGGRA-1526 | 15″ x 26″ 38cm x 66cm | 32″ x 38″ x 2.25″ 81cm x 97cm x 5.7cm | 25″ x 38″ 63.5cm x 96.5cm | 41″ x 50.4″ 104cm x 128cm | 3 SCFM 85 L/min | 1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
| COLMAGGRA-2538 | 25″ x 38″ 64cm x 97cm | 42″ x 50″ x 2.25″ 106cm x 127cm x 5.7cm | 36″ x 45.5″ 91cm x 116cm | 51.5″ x 60.4″ 131cm x 153cm | 3 SCFM 85 L/min | 1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
| COLMAGGRA-3041 | 30″ x 41″ 76cm x 104cm | 47″ x 53″ x 2.25″ 119cm x 135cm x 5.7cm | 41″ x 45.5″ 104cm x 116cm | 51.5″ x 65.4″ 131cm x 166cm | 3 SCFM 85 L/min | 1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
| COLMAGGRA-3246 | 32″ x 46″ 81cm x 117cm | 49″ x 58″ x 2.25″ 124cm x 147cm x 5.7cm | 43″ x 52″ 110cm x 132cm | 65″ x 74″ 165cm x 188cm | 3 SCFM 85 L/min | 1 Phase, 208-230 VAC, 14 A, 50-60 Hz, 2.5 KW 3 Phase, 208V, 8.6 A* |
*Special order
Premium service that will exceed your expectations
Customer Service and Support are a way of life at Anatol Equipment. We strive to improve our service to keep your equipment running like the day you had it installed. This is our commitment to every customer. Two-year limited warranty.
