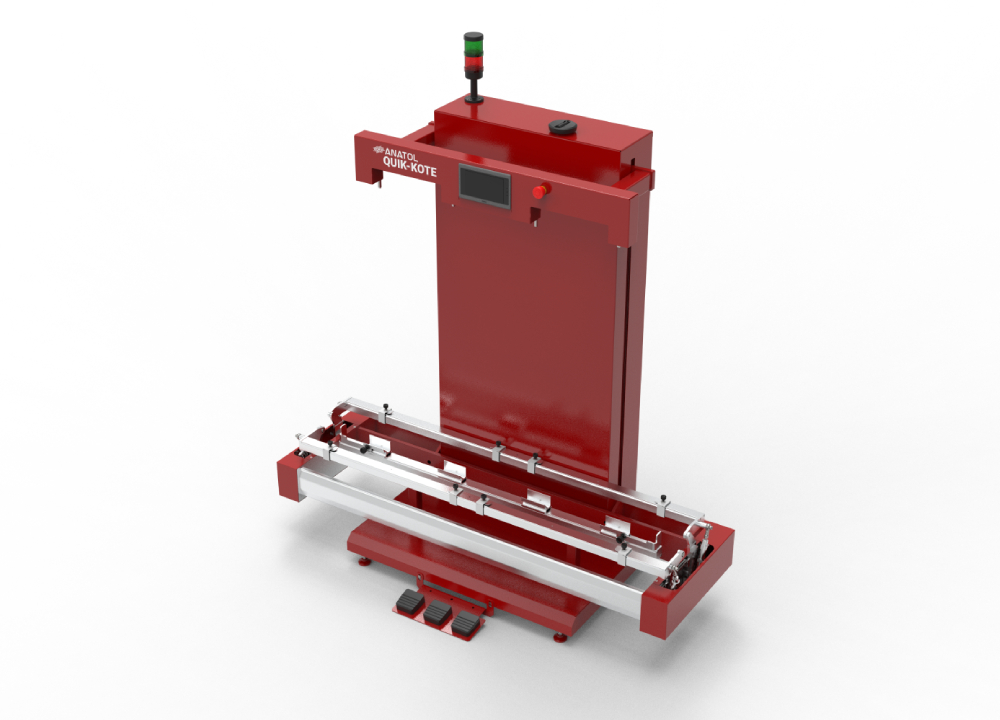

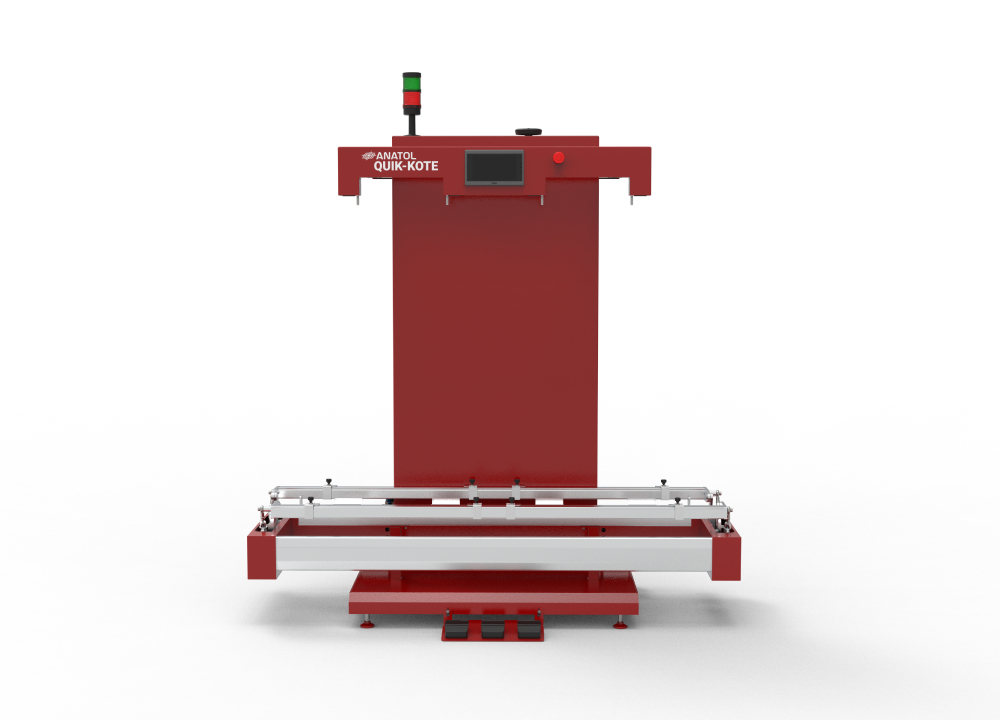

Quik-Kote Automatic Emulsion Coating Machine

Dual-Screen Automatic Emulsion Coating Machine.

Compatible with screen frame sizes of 18” x 19” up to 26″ x 43″ (two screens) or 52” x 45” (one screen).

Get a Quote

Description

Anatol’s Quik-Kote automatic emulsion coating machine takes the work out of coating screens and allows you to coat more consistently than ever, improving your print quality. Shorten your screen prep times by quickly coating one or two screens at the same time! The scoop coaters are lifted with servo motors, ensuring a smooth, even coating of emulsion to create stencils of uniform thickness. Lay down more consistent ink deposits than you can by coating manually, resulting in higher quality prints.

Shorten your screen prep time and coat more consistently for higher quality prints:

  • Servo lift for smooth, fast and even emulsion coating
  • Holds one or two screens at one time
  • Compatible with screen frame sizes of 18” x 19” up to 26″ x 43″ (two screens) or 52” x 45” (one screen)

Accessories
The Anatol Scoop Coater for Quik-Kote – Learn More

Calculate Sizes of Scoop Coater for Quik-Kote

Calculate Sizes of Scoop Coater for Quik-Kote

Standard features

Heavy-Duty Construction
  • High quality pneumatic cylinders with automatic braking ensure smooth and accurate movement for consistent operation and even coating
  • Scoop coaters are lifted with servo motors for smooth, precise and reliable operation
  • Aluminum scoop coaters feature unique easy-to-clean design
  • High quality, durable steel screen locks are adjustable for a variety of different screen frame sizes and thicknesses to ensure a firm hold and even emulsion coating
  • Compact footprint saves space in your shop
Fast, Consistent Operation
  • Quick, even and consistent automatic coating at an affordable price point
  • Most productive coating machine on the market-can coat one or two screens at a time
  • Uniform scoop coater pressure ensures a smooth, even coating of emulsion on the screen
Intuitive Control Interface
  • Easy-to-use 7’’ touchscreen control panel with intuitive software gives you full control over the machine
  • Machine automatically detects when screens are loaded and displays an error if the screens are loaded improperly
  • Save and recall up to 15 different programs

Quik-Kote Automatic Emulsion Coating Machine Specifications

Dimensions67.5″ x 77″ x 34″
(171.5cm x 195.5cm x 86.4cm)
Weight507lb (230kg)
Compatible Screen SizeTwo screens 18’’ x 19’’ up to 26” x 43”
(45.7cm x 48.2cm up to 66cm x 109cm)
Compatible Screen Frame Thickness0.75’’ x 0.75’’ up to 2’’ x 2’’
(2cm x 2cm up to 5cm x 5cm)
Air Requirements0.6 CFM (18 l/min) @60PSI
Air Pressure58 PSI (4 bar)
ELECTRICAL REQUIREMENTS1ph, 208-240V, 50/60Hz, 4A
Max Power: 850W

Download Brochure

Download Brochure

Certification & Warranty

Certification & Warranty

Two-Year Limited Warranty
