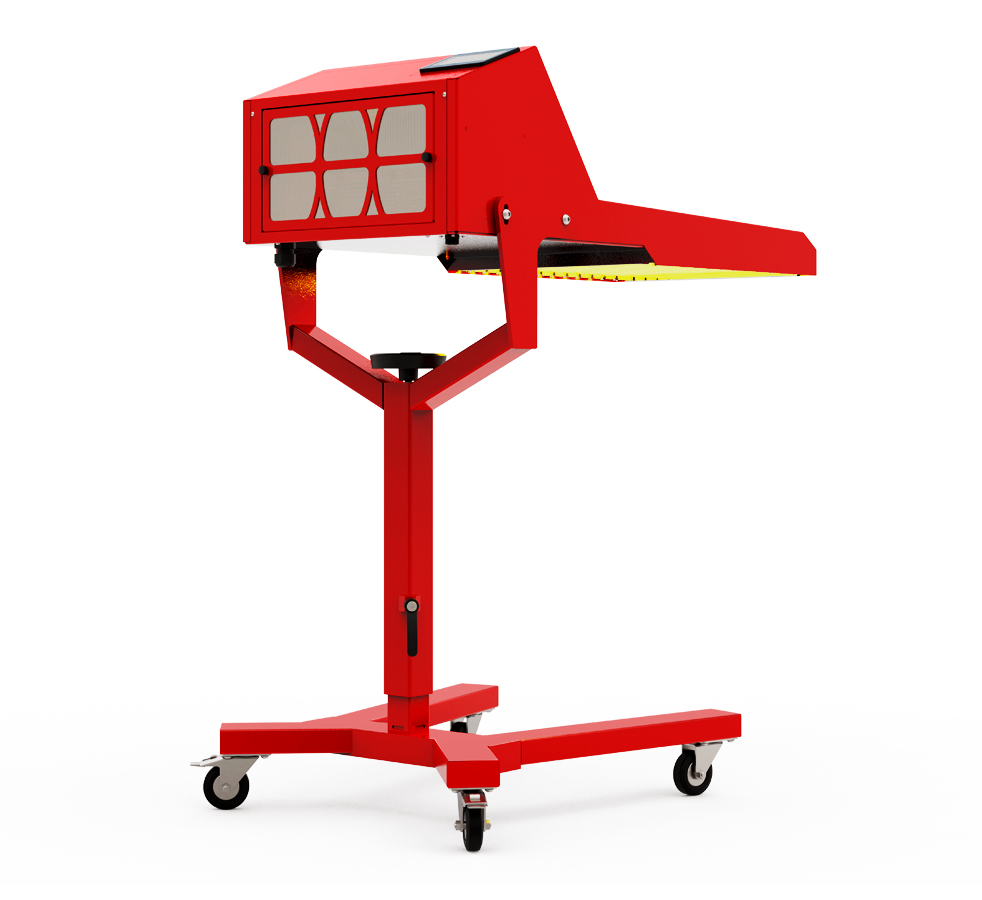

Comet Prime Flash Cure Unit

View 360 View 360

Quartz flash for heat-sensitive garments.

Models available with 16” x 18” and 20” x 28” curing areas.

Get a Quote

Take maximum control over your flash settings to effectively cure even the most sensitive garments.

Anatol’s Comet Prime quartz flash cure was designed to give you precise control over all aspects of your flash curing, so you can cure even the most heat-sensitive materials with speed and efficiency while minimizing the risk of scorching or damaging them. The Comet Prime’s adjustable built-in air circulation system is perfect for curing a wide variety of inks and substrates. Control your desired curing time, temperature and active heating zones right from an easy-to-use touchscreen control panel, or from the touchscreen of a connected Anatol automatic screen printing press. Models are available with two different curing areas – 16″ x 18″ and 20″ x 28″ – and are compatible with Anatol automatic and manual presses.

  • Quartz flash with air circulation and temperature sensor, designed for curing delicate, heat-sensitive garments like nylon.
  • Precise control over curing intensity, temperature, air circulation and active heating zones, right from the touchscreen of your Anatol automatic press.
  • Uniform air circulation cures many types of ink quickly and efficiently and prevents garments from scorching.
  • Quartz lamps have a fast warm-up time and activate automatically only as needed, reducing energy consumption.
  • Mounts easily in the print head of your Anatol automatic press; also available on a height-adjustable floor stand for use with a manual press.

16”x 18”
12 Lamps3 zones
(Zone I – 4 lamps, Zone II – 4 lamps,
Zone III – 4 lamps)
4.47 W/cm2
(28.87 W/in2)
1 Ph, 208-240V, 50/60 Hz, 9kW, 43A
3 Ph, 208V, 25A
20”x 28”
18 Lamps3 zones
(Zone I – 6 lamps, Zone II – 6 lamps,
Zone III – 6 lamps)
4.9 W/cm2
(31.61 W/in2)
1 Ph, 208-240V, 50/60 Hz, 18.75kW, 60A
3 Ph, 208V, 35A
* The maximum power consumption is calculated for all lamps operating at maximum power
** The dimensions in parentheses mean are the dimensions with the electrical box included
